ESP200

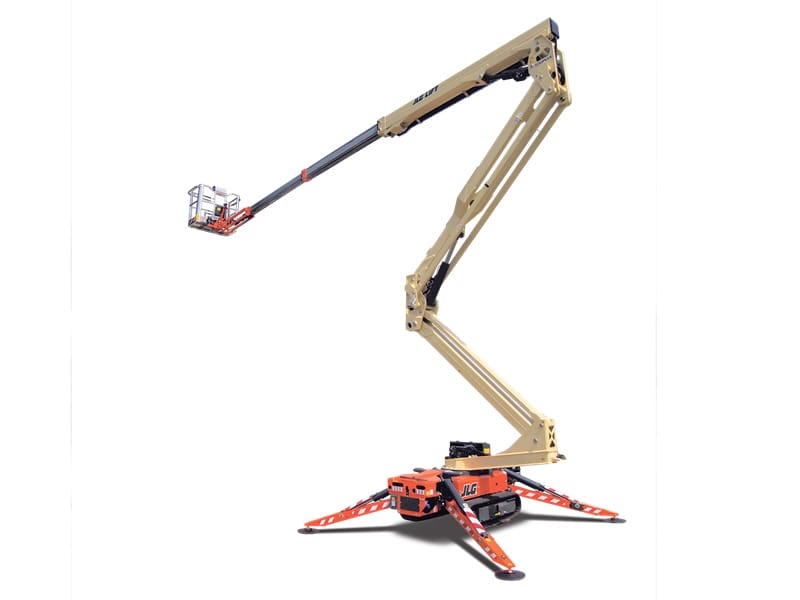

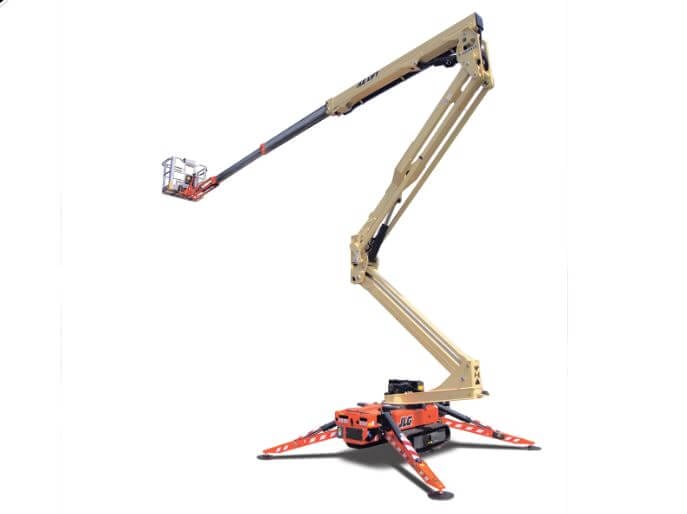

JLG X20J+E
Spider Lift – 20.0m Electric
The JLG X20J PLUS is a compact, diesel driven spider lift with an impressive 20,05 m working height and 9,9 m horizontal reach. Add to that 230 kg of lift capacity and you have all the versatility you need for jobs on soft terrain.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Electric
Working height
20,10 m
Outreach
9,70 m
Workload Capacity
230 kg
Own weight
2.840 kg
Platform dimensions (d x w)
1,34 x 0,69m
Transport dimensions (d x w x h)
5,00 x 1,48 x 2,00m
Max platform height
18,10 m
Max platform outreach
9,90 m
Up & over height
8,20 m
Recommended number of people
2
Maneuvering at height
No
Gradeability
28,70 %
Charging voltage
220-240 V
Usage
Outdoor, Indoor
Lifting Propulsion
Electric
Diagram
Downloads
An upgrade in toughness and strength from the well proven
Spider lift is one of the most efficient access platforms to get the job done at height safely. It provides great deal of flexibility in terms of reach especially in narrow areas. Spider lift varies on the basis of working height, power source and lifting capacity. Manlift offers well maintained spider lifts for rent, both electric and diesel powered spider lifts are available.
