DSW120

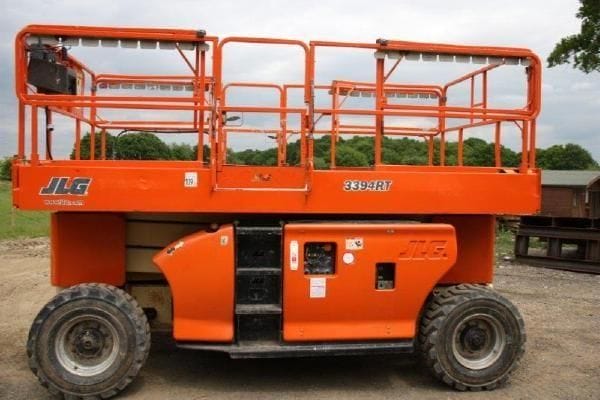

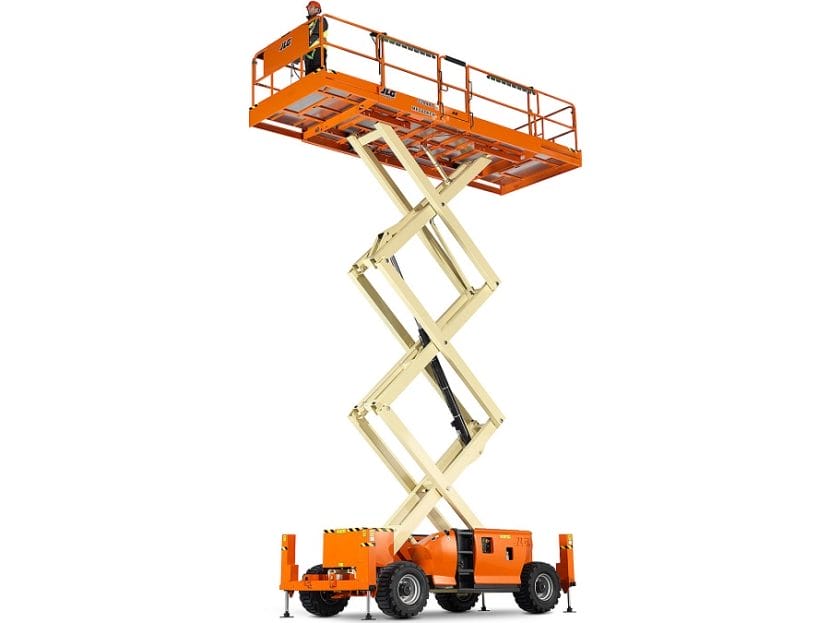

JLG 3394RT
Scissor Lift – 12.0m Diesel
JLG 3394RT scissor lift is a rough terrain scissor lift offered by Manlift rental. The JLG 3394RT scissor lift provides a working height of 12.06 m. The JLG 3394RT diesel powered scissor lift is highly recommended to work outdoor at heights and new twin-pump-powered 4WD for a higher level of performance over rough terrain. MegaDeck platform option with 7.20 metres extended length for increased work space. Optional auto-leveling jacks for quicker set up. Twin-pump cross-flow drive system for outstanding terrain performance.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
12,10 m
Workload Capacity
909 kg
Own weight
6.600 kg
Consumption (average / h)
4.4 l/hour
CO2 emission (average / h)
11,75 kg
Platform dimensions (d x w)
3,81 x 2,18m
Transport dimensions (d x w x h)
3,86 x 2,39 x 1,97m
Platform extension length
1,20 m
Max platform height
10,10 m
Recommended number of people
3+
Maneuvering at height
Yes
Gradeability
45,00 %
Usage
Indoor, Outdoor
Lifting Propulsion
Diesel
Downloads
An upgrade in toughness and strength from the well proven
It is useful to perform not only various tasks such as mechanical engineering, facilities management, electrical contracting, cleaning, painting, warehousing and decorating, but also it is used in many construction and industrial installation applications. Manlift offers a wide range of well maintained JLG Scissor lifts for rent based on different customer requirements.
