DCT220
JLG 660SJC
Crawler Telescopic Lift – 22.0m Diesel

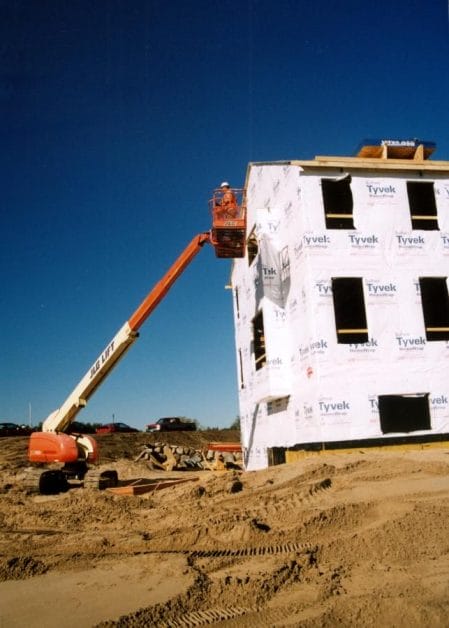

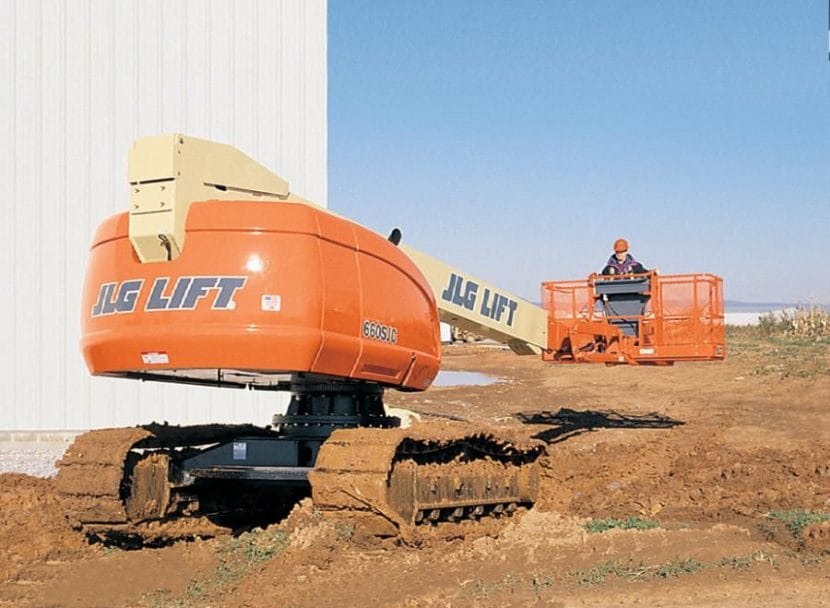

The JLG 660SJC is a diesel powered cherry picker with a working height of 22.31 metres and a maximum outreach of 17.3 metres. The JLG 660SJC MEWP can reach the full working height in just 65 seconds. This boom lift is easy to operate and incredible manoeuvrable, suitable for even the most congested site. It’s ideal for general Building Maintenance, general construction and steel erection, among others.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
22,30 m
Outreach
18,00 m
Workload Capacity
230 kg
Own weight
12.300 kg
Consumption (average / h)
7.52 l/hour
CO2 emission (average / h)
6,04 kg
Platform dimensions (d x w)
1,83 x 0,91m
Transport dimensions (d x w x h)
10,21 x 2,49 x 2,56m
Max platform height
20,30 m
Max platform outreach
18,00 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
55,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads
An upgrade in toughness and strength from the well proven
The JLG 660SJC is highly recomended for the toughest jobs as it can eaisly monever on rough terrains and provides you the mobility you need. Its zero turing radius provides you flexiblity to get around the job site easily.
