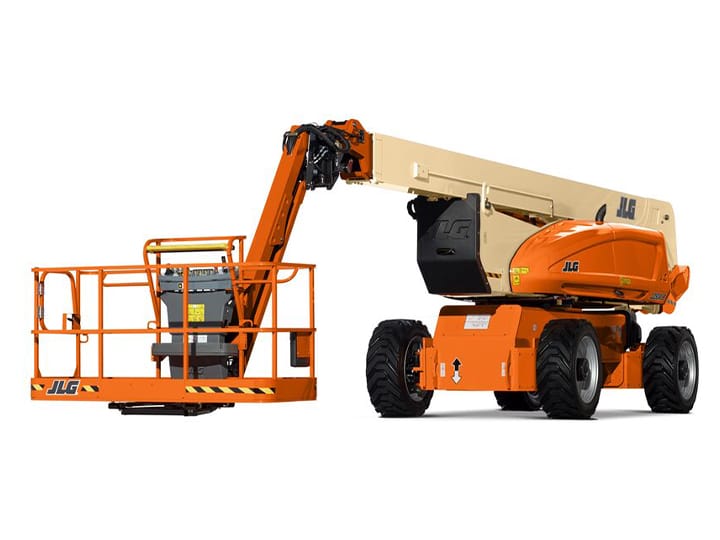

DBA405
JLG 1250AJP
Articulated Boom Lift – 40.5m Diesel
Articulating boom lift is one of the most reliable machine to work at heights there are several tasks one has to perform on heights such as painting, cleaning and maintenance services, it is also used by construction industry to carry out various operations at height safely. Whether articulating or telescopic boom lift's, Manlift offers highly reliable and well maintained JLG boom lifts for rent so that people can work safely and efficiently at heights.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
40,30 m
Outreach
19,25 m
Workload Capacity
230 kg
Own weight
21.000 kg
Consumption (average / h)
11,10 kWh
CO2 emission (average / h)
29,64 kg
Platform dimensions (d x w)
0,91 x 2,44m
Transport dimensions (d x w x h)
11,46 x 2,49 x 3,05m
Max platform height
38,30 m
Max platform outreach
19,25 m
Ground clearance
0,30 m
Drive speed
5,20 km/u
Fuel tank
117 L
Up & over height
18,44 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
45,00 %
Usage
Indoor, Outdoor, Offroad
Lifting Propulsion
Diesel
Diagram
Downloads
Specification Sheet Manufacturer
JLG 1250AJP Specification sheet EN.pdf
03 Feb 2024
pdf
1.96 mb
BIM Model
MANLIFT-JLG-1250AJP-HORIZONTAL_OUTREACH.ifc
10 Apr 2024
ifc
31.42 mb
BIM Model
MANLIFT-JLG-1250AJP-STOWED_POSITION.ifc
10 Apr 2024
ifc
31.44 mb
BIM Model
MANLIFT-JLG-1250AJP-VERTICAL_OUTREACH.ifc
10 Apr 2024
ifc
31.43 mb
BIM Model
MANLIFT-JLG-1250AJP.rfa
10 Apr 2024
rfa
22.78 mb
Specification Sheet Manlift
MANLIFT_specsheet_JLG-1250AJP_en_manlift.pdf
10 Apr 2024
pdf
85.38 kb
An upgrade in toughness and strength from the well proven
The JLG 1250AJP articulating boom lift provides working height of 40.3 m with great deal of flexilblity. Articulated Boom Lifts (designed to reach up and over an object, articulated boom lifts have one or even two articulating joints in the main boom enabling the machine to have a large outreach potential). Diesel powered JLG 1250AJP are highly suitable for outside jobs that require flexible machinery to take your staff and equipment up in the air safely. JLG’s patented QuikStick® boom design significantly reduces lift/lower cycle times. Four wheel drive and four wheel steer plus oscillating axle for superb jobsite mobility. Dual platform capacity with up to 450kg available provides increased versatility and productivity.
