DBA280
Skyjack SJ85AJ
Articulated Boom Lift – 28.0m Diesel
Ready to rent: our Skyjack SJ85AJ Articulated boom lifts provides a working height of 27,91 m and a maximum of 17,57 m horizontal reach. The maximum lift capacity for this Skyjack is 227 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
27,91 m
Outreach
17,57 m
Workload Capacity
227 kg
Own weight
16.965 kg
Consumption (average / h)
5,40 kWh
CO2 emission (average / h)
14,42 kg
Platform dimensions (d x w)
2,40 x 0,91m
Transport dimensions (d x w x h)
11,89 x 2,49 x 2,90m
Max platform height
25,91 m
Max platform outreach
17,07 m
Drive speed
4,80 km/u
Up & over height
10,36 m
Recommended number of people
2
Maneuvering at height
Yes
Usage
Outdoor
Lifting Propulsion
Diesel

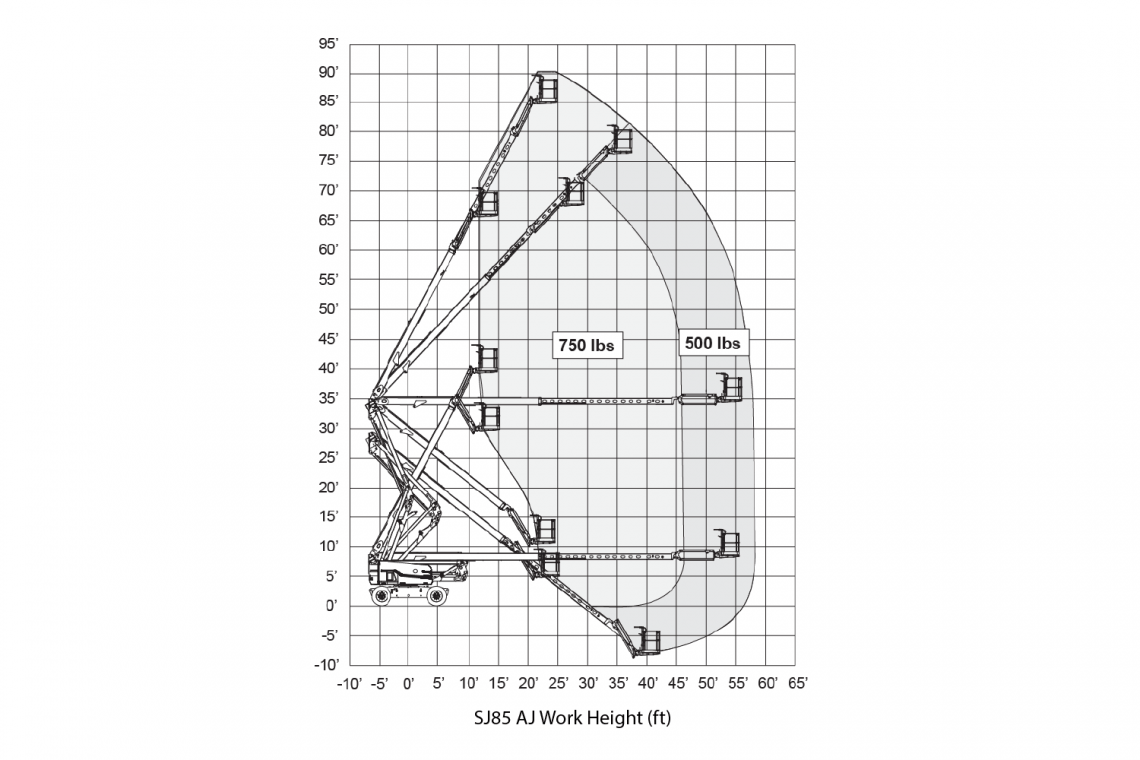

Diagram
Downloads
An upgrade in toughness and strength from the well proven
Do you have a job or project where you need an articulating boom lift? You can hire an articulating boom lift from Riwal on attractive price/quality terms. The articulating boom lift is perfect for jobs where there are obstacles at height and is also perfectly suitable for inside use. Have a look at our below listed wide range. Please do not hesitate to contact us if you need any advice. We’d be delighted to tell you more about the benefits of articulating boom lift rental!
