DBA205

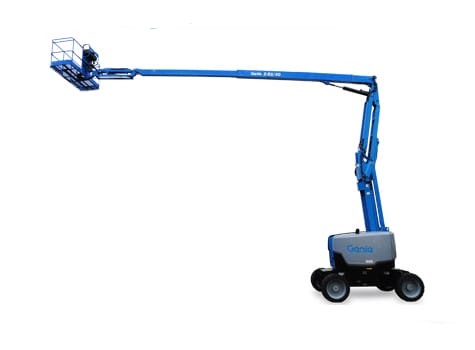

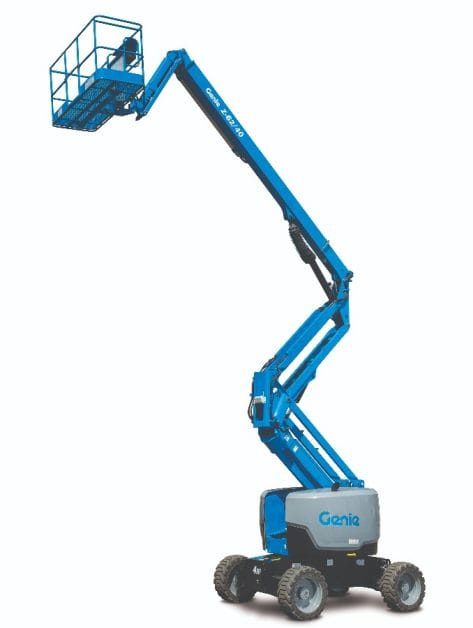

Genie Z62/40
Articulated Boom Lift – 20.5m Diesel
A Z boom lift by Genie is one of the most flexible machines to work at heights, ideally used to work outdoor construction and industrial applications. Manlift offers highly reliable and well maintained Genie boom lifts for rent based on different requirements.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
20,87 m
Outreach
12,42 m
Workload Capacity
227 kg
Own weight
10.070 kg
Consumption (average / h)
5,40 kWh
CO2 emission (average / h)
14,42 kg
Platform dimensions (d x w)
0,91 x 2,44m
Transport dimensions (d x w x h)
9,25 x 2,49 x 2,54m
Max platform height
18,87 m
Max platform outreach
11,77 m
Drive speed
4,80 km/u
Up & over height
7,80 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
45,00 %
Usage
Indoor, Outdoor
Lifting Propulsion
Electric
Diagram
![](https://e3iq32dhh2t.exactdn.com/app/uploads/sites/20/2024/02/Genie-Z6240-reach-diagram.jpg?strip=all&lossy=1&quality=92&webp=92&avif=80&sharp=1&ssl=1)
Downloads
An upgrade in toughness and strength from the well proven
The Genie Z62/40 articulating boom lift provides working height of 20.39 m provide lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none. Hydraulic rotation lets you move the platform where you need it. Self-leveling feature keeps the platform level through the entire range of motion. Genie Z62/40 diesel boom lift can be deployed in areas with little maneuvering space and on rough terrain.
