DBA180
Genie Z51/30JRT
Articulated Boom Lift – 18.0m Diesel
A Z boom lift by Genie is one of the most flexible machines to work at heights, ideally used to work outdoor construction and industrial applications. Manlift offers highly reliable and well maintained Genie boom lifts for rent based on different requirements.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
17,62 m
Outreach
9,40 m
Workload Capacity
227 kg
Own weight
7.212 kg
Consumption (average / h)
5,40 kWh
CO2 emission (average / h)
9,08 kg
Platform dimensions (d x w)
0,76 x 1,83m
Transport dimensions (d x w x h)
7,50 x 2,29 x 2,16m
Max platform height
15,62 m
Max platform outreach
9,40 m
Up & over height
7,39 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
45,00 %
Usage
Outdoor
Lifting Propulsion
Diesel

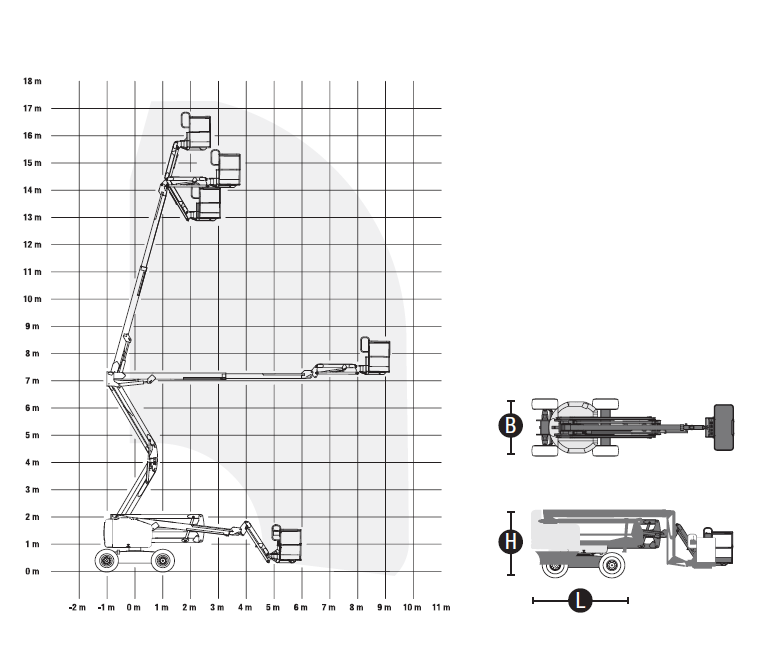

Diagram
![](https://e3iq32dhh2t.exactdn.com/app/uploads/sites/20/2024/02/Genie-Z5130JRT-reach-diagram.png?strip=all&lossy=1&quality=92&webp=92&avif=80&sharp=1&ssl=1)
Downloads
An upgrade in toughness and strength from the well proven
The Genie Z51/30JRT articulating boom lift provides working height of 17.62 m provide lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none. Hydraulic rotation lets you move the platform where you need it. Self-leveling feature keeps the platform level through the entire range of motion. Genie Z51/30JRT diesel boom lift can be deployed in areas with little maneuvering space and on rough terrain.
