DBA160

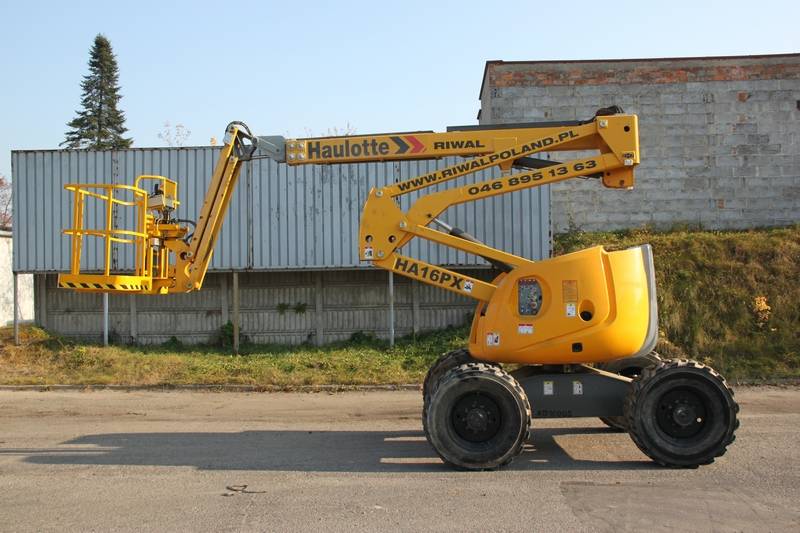

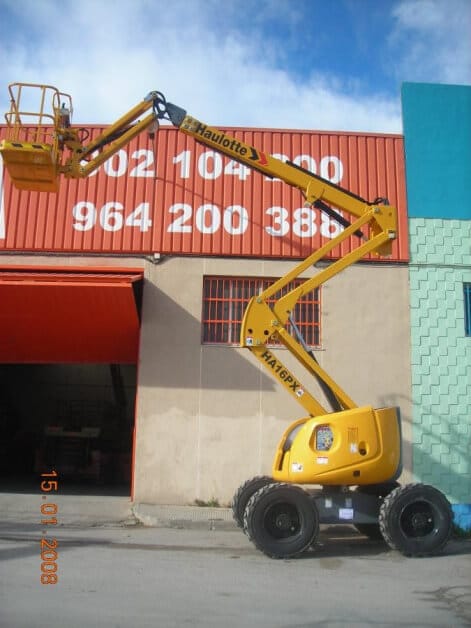

Haulotte HA16PX
Articulated Boom Lift – 16.0m Diesel
Haulotte HA16PX is a diesel powered articulating boom lift which used to work at height safely and require to perform several task including painting, cleaning and maintenance services, it is also use to perform construction operations. Whether articulating or telescopic boom lift's, Manlift offers highly reliable and well maintained Haulotte boom lifts for rent so that people can work safely and efficiently at heights.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
16,00 m
Outreach
8,70 m
Workload Capacity
230 kg
Own weight
7.240 kg
Consumption (average / h)
3.4 l/hour
CO2 emission (average / h)
9,08 kg
Platform dimensions (d x w)
1,80 x 0,80m
Transport dimensions (d x w x h)
6,95 x 2,30 x 2,20m
Max platform height
14,00 m
Max platform outreach
8,70 m
Up & over height
6,60 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
50,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads
An upgrade in toughness and strength from the well proven
The Haulotte HA16PX is a reliable articulating boom lift which offers working height of 16 m. Articulated Boom Lifts (designed to reach up and over an object, articulated boom lifts have one or even two articulating joints in the main boom enabling the machine to have a large outreach potential.). Haulotte HA 16PX boom lifts are mostly used by construction industry as it can eaisly move around on rough surfaces.
