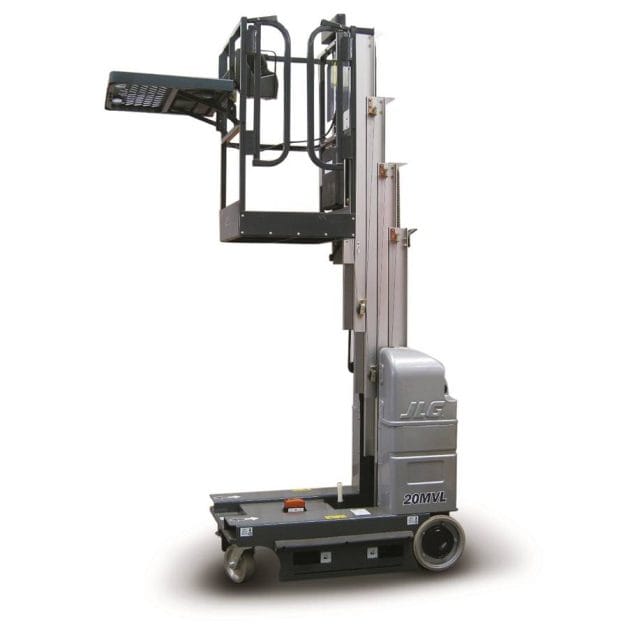

EVM078
JLG 20MVL
Vertical Mast Lift – 7.8m Electric
International
The Electric powered JLG 20MVL offers you impressive versatility. With a working height of 7,7 m and a lifting capacity of 159 kg, this rental machine gives you exactly what you need to work efficiently. Ideal for Indoor. The platform is size 0,71 m by 0,66 m.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Electric
Working height
7,70 m
Workload Capacity
159 kg
Own weight
1.055 kg
Consumption (average / h)
8,73 kWh
CO2 emission (average / h)
4,12 kg
Platform dimensions (d x w)
0,71 x 0,66m
Transport dimensions (d x w x h)
1,36 x 0,75 x 1,98m
Max platform height
5,70 m
Recommended number of people
1
Maneuvering at height
Yes
Gradeability
20,00 %
Usage
Indoor
Lifting Propulsion
Electric
Diagram
Downloads
An upgrade in toughness and strength from the well proven
A vertical aerial work platform is small, easy to operate and ifeal if you need to carry out work on, for example, ceilings. Single man lifts are particularly suitable for cleaning activities. Because the vertical aerial work platform can be operated sideways as well as up and down, it gives you a very comfortable reach. The single man lift’s oscillating cage also supports this.
