EVM057

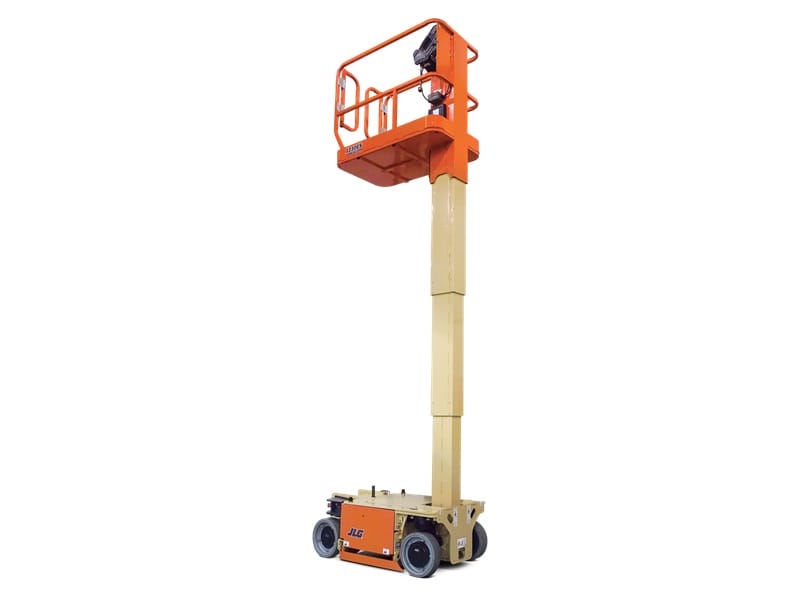

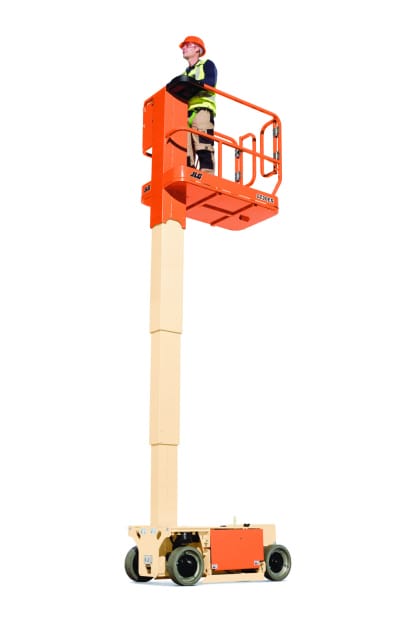

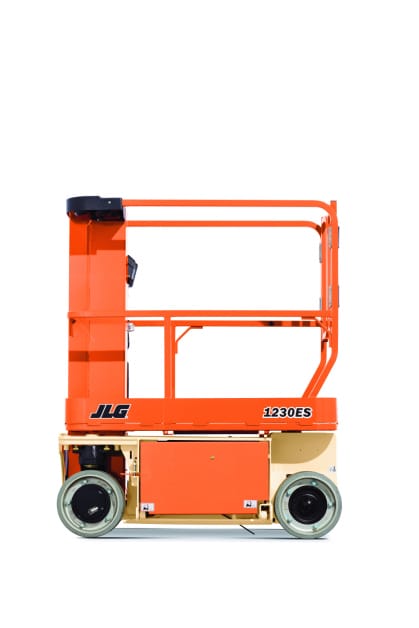

JLG 1230ES
Vertical Mast Lift – 5.7m Electric
The Electric powered JLG 1230ES offers you impressive versatility. With a working height of 5,66 m and a lifting capacity of 230 kg, this rental machine gives you exactly what you need to work efficiently. Ideal for Indoor. The platform is size 1,26 m by 0,69 m.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Electric
Working height
5,66 m
Workload Capacity
230 kg
Own weight
790 kg
Consumption (average / h)
8.73 kWh
CO2 emission (average / h)
4,12 kg
Platform dimensions (d x w)
1,26 x 0,69m
Transport dimensions (d x w x h)
1,36 x 0,76 x 1,65m
Max platform height
3,66 m
Ground clearance
0,07 m
Drive speed
4,80 km/u
Recommended number of people
1
Maneuvering at height
Yes
Gradeability
25,00 %
Usage
Indoor
Lifting Propulsion
Electric
Diagram
Downloads
An upgrade in toughness and strength from the well proven
The JLG 1230ES vertical lift provides working height of 5.6 m. Hydraulically operated vertical steel mast lift with ES scissor drive, power control system provides quiet, clean and smooth operation. Electric front wheel drive provides outstanding manoeuvrability and long duty cycles. Manual roll-out deck extension standard for increased workspace. Integrated component design with two hydraulic hoses reduces potential for leaks and assists maintenance to keep you on the job longer.
