DBT480

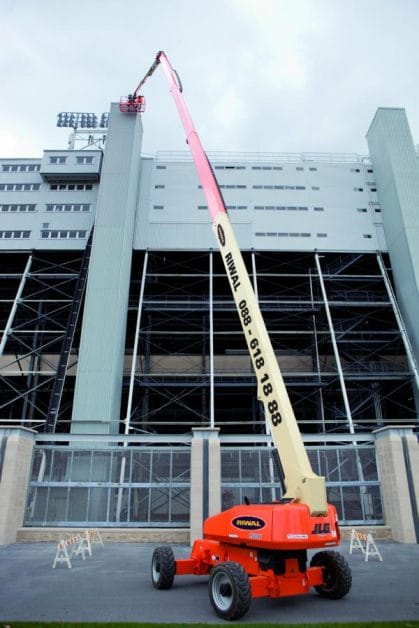

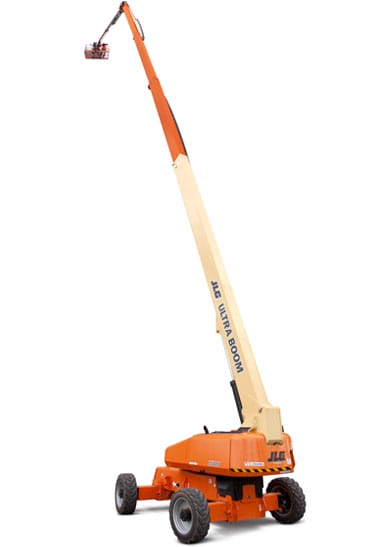

JLG 1500SJ
Telescopic Boom Lift – 48.0m Diesel
Ready to rent: our JLG 1500SJ Telescopic boom lifts provides a working height of 47,7 m and a maximum of 24,4 m horizontal reach. The maximum lift capacity for this JLG is 230 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
47,70 m
Outreach
24,40 m
Workload Capacity
230 kg
Own weight
22.000 kg
Consumption (average / h)
10,30 kWh
CO2 emission (average / h)
27,50 kg
Platform dimensions (d x w)
0,91 x 2,44m
Transport dimensions (d x w x h)
18,82 x 2,49 x 3,05m
Max platform height
45,70 m
Max platform outreach
24,40 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
40,00 %
Usage
Outdoor, Offroad
Lifting Propulsion
Diesel

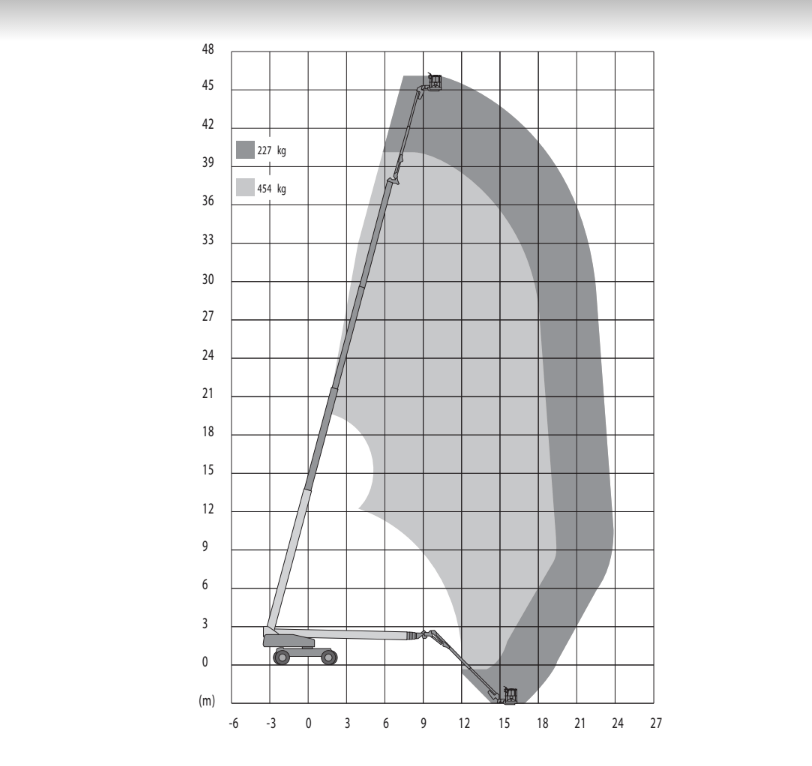

Diagram
Downloads
An upgrade in toughness and strength from the well proven
The JLG 1500SJP is the largest telescopic boom lift offers working height of 47.72 m with reliablity and safety. The JLG 1500SJP ultra boom lift is much faster to full height, so operators can spend more time working and less time positioning the boom. Telescoping jib provides work envelope flexibility and even more outreach at elevation. Largest self-propelled telescopic boom available. Strong 100,000-psi steel and a dual 1,000/500lb capacity. Ideal for general contractors, glaziers, window cleaners, welders and more.
