DBT280

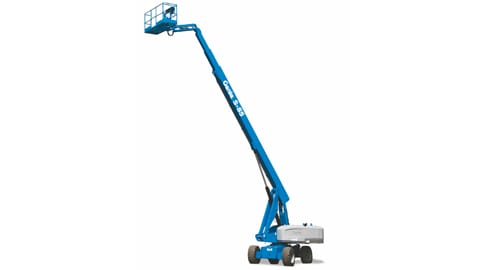

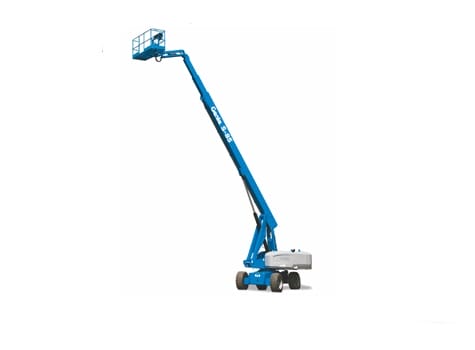

Genie S85
Telescopic Boom Lift – 28.0m Diesel
Ready to rent: our Genie S85 Telescopic boom lifts provides a working height of 27,97 m and a maximum of 22,71 m horizontal reach. The maximum lift capacity for this Genie is 227 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
27,97 m
Outreach
22,71 m
Workload Capacity
227 kg
Own weight
17.236 kg
Consumption (average / h)
6.1 l/hour
CO2 emission (average / h)
16,29 kg
Platform dimensions (d x w)
0,91 x 2,44m
Transport dimensions (d x w x h)
12,20 x 2,50 x 2,80m
Max platform height
25,97 m
Max platform outreach
22,71 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
30,00 %
Usage
Offroad, Outdoor
Lifting Propulsion
Electric

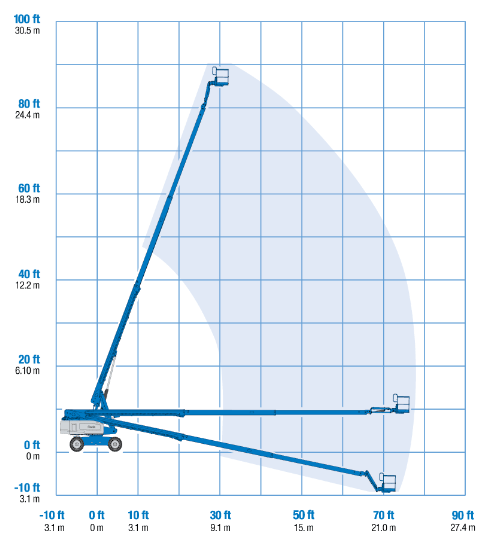

Diagram
Downloads
An upgrade in toughness and strength from the well proven
The Genie S85 telescopic boom lift offers working height of 27.91 m. Genie’s telescopic S-booms offer greater horizontal outreach than any other type of aerial platform – perfect for areas with limited access in construction and industrial applications. Ramped boom control system provides smooth boom functions and finer control. Virtual pivot primary boom aligns machine’s center of gravity for lower machine weight. Active oscillating axle enhances traction on rough terrain and 360˚continuous rotation turntable allows quick positioning.
