DBT225

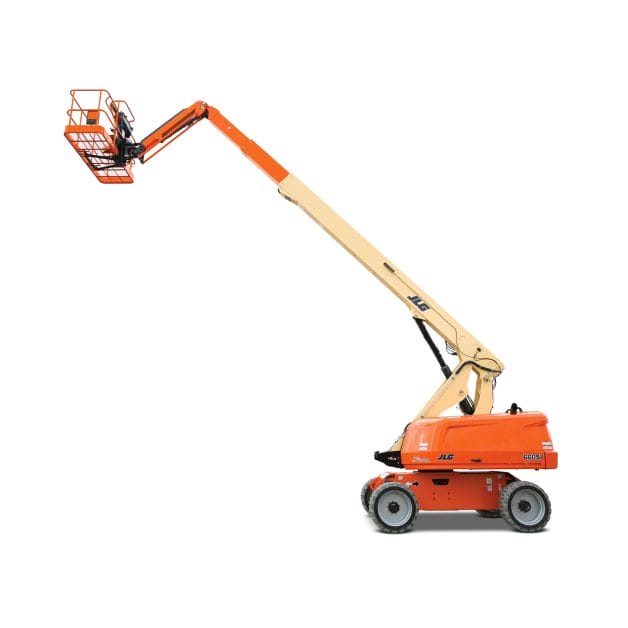

JLG 680S
Telescopic Boom Lift – 22.5m Diesel
International
Ready to rent: our JLG 680S Telescopic boom lifts provides a working height of 22,7 m and a maximum of 18 m horizontal reach. The maximum lift capacity for this JLG is 230 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
22,70 m
Outreach
18,00 m
Workload Capacity
230 kg
Own weight
15.950 kg
Consumption (average / h)
6 l/hour
CO2 emission (average / h)
19,76 kg
Platform dimensions (d x w)
4,06 x 1,22m
Transport dimensions (d x w x h)
12,23 x 2,49 x 3,02m
Max platform height
20,70 m
Max platform outreach
18,00 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
30,00 %
Usage
Outdoor, Offroad
Lifting Propulsion
Diesel
Diagram
Downloads
An upgrade in toughness and strength from the well proven
The JLG 680S telescopic boom lift offers working height of 23 m with reliablity and safety. For proper maneuvering and mobility, this lift has 4-wheel drive, an oscillating shaft and a steering wheel that affects all the wheels. In addition, the electrical telescopic boom lift is suited for indoor and outdoor use. Its capacity to reach over obstacles and to work at heights allows you to use this machine in various environments: in department stores, factories and shopping centres. The narrow varieties of the telescopic boom lift are capable of operating on narrow pathways. The automatic traction control (ATC) function allows you to drive the machine over obstacles and non-smooth surfaces.
