DBT220

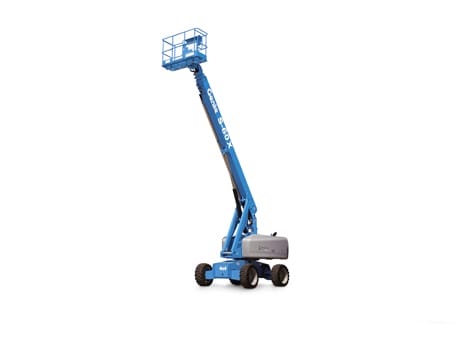

Genie S65
Telescopic Boom Lift – 22.0m Diesel
Ready to rent: our Genie S65 Telescopic boom lifts provides a working height of 21,8 m and a maximum of 16,51 m horizontal reach. The maximum lift capacity for this Genie is 227 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
21,80 m
Outreach
16,51 m
Workload Capacity
227 kg
Own weight
10.024 kg
Consumption (average / h)
8.2 l/hour
CO2 emission (average / h)
21,89 kg
Platform dimensions (d x w)
0,91 x 2,44m
Transport dimensions (d x w x h)
9,50 x 2,49 x 2,72m
Max platform height
19,80 m
Max platform outreach
16,51 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
30,00 %
Usage
Outdoor, Offroad
Lifting Propulsion
Diesel
Diagram
Downloads
An upgrade in toughness and strength from the well proven
The Genie S125 telescopic boom lift offers working height of 40.5 m. For proper maneuvering and mobility, this lift has 4-wheel drive, an oscillating shaft and a steering wheel that affects all the wheels. In addition, the electrical telescopic boom lift is suited for indoor and outdoor use. Its capacity to reach over obstacles and to work at heights allows you to use this machine in various environments: in department stores, factories and shopping centres. The narrow varieties of the telescopic boom lift are capable of operating on narrow pathways. The automatic traction control (ATC) function allows you to drive the machine over obstacles and non-smooth surfaces.
