DSP310

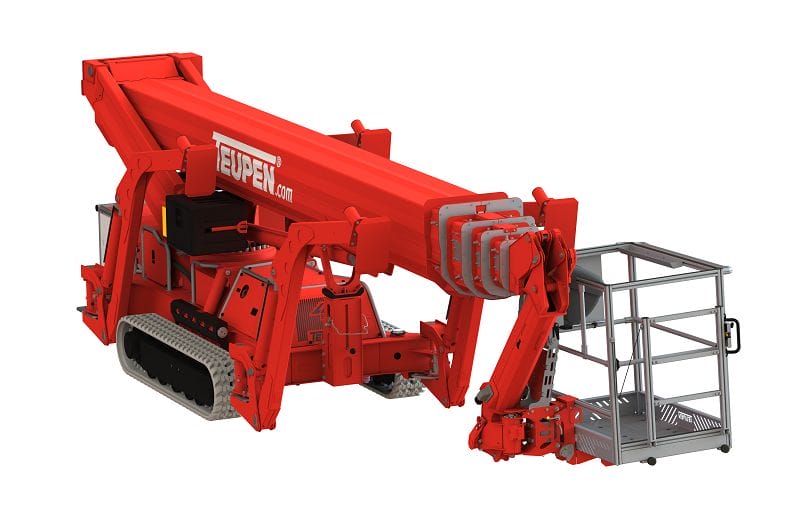

Teupen 31T
Spider Lift – 31.0m Diesel
International
The Teupen 31T Spider lifts provides a working height of 31 m and a maximum of 17,7 m horizontal reach. The maximum lift capacity for this Teupen is 250 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
31,00 m
Outreach
17,70 m
Workload Capacity
250 kg
Own weight
4.300 kg
Platform dimensions (d x w)
1,20 x 0,80m
Transport dimensions (d x w x h)
7,23 x 1,58 x 1,98m
Max platform height
29,00 m
Max platform outreach
17,20 m
Drive speed
4,00 km/u
Up & over height
2,00 m
Maneuvering at height
No
Usage
Indoor, Outdoor
Lifting Propulsion
Hybrid
Diagram
Downloads
An upgrade in toughness and strength from the well proven
Riwal has an extensive rentals fleet. We have a very broad range of spider lifts, and can provide companies in various industries with the right spider lift. Our spider lifts are low in weight and, thanks to caterpillar tracks, can be deployed in virtually any location. The most suitable spider lift for you depends on the reach you need to achieve.
