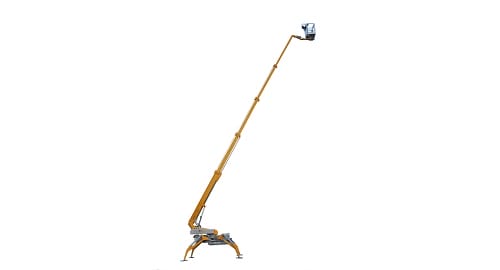

Omme 2600RBD

Spider Lift – 25.5m Diesel

The Omme 2600RBD Spider lifts provides a working height of 25,6 m and a maximum of 12 m horizontal reach. The maximum lift capacity for this Omme is 200 kg.

Rent this machine

Need help with rental?
Safety gear required
Technical data
Driving propulsion
Diesel
Working height
25,60 m
Outreach
12,00 m
Workload Capacity
200 kg
Own weight
3.625 kg
Platform dimensions (d x w)
1,25 x 0,80m
Transport dimensions (d x w x h)
7,20 x 1,10 x 1,99m
Max platform height
23,60 m
Max platform outreach
12,00 m
Up & over height
2,00 m
Maneuvering at height
No
Usage
Outdoor, Indoor
Lifting Propulsion
Diesel
Diagram
Downloads

An upgrade in toughness and strength from the well proven

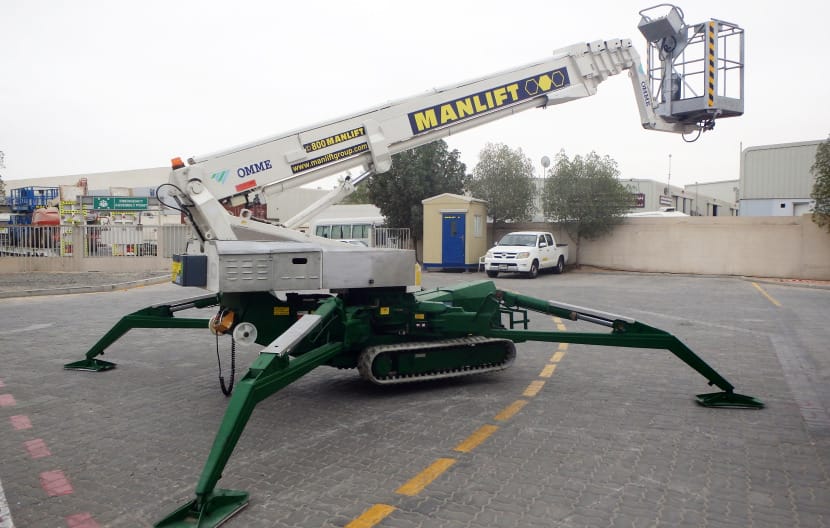

The Omme Lift 2600RBD lift offers working height of 25.6 m and it wide range of features can fulfill various requirements for indoor and outdoor operations. The basket mounting that forms a “fly” boom mounted to the top boom section gives increased outreach over obstacles. The specially designed steel booms made from high and broad profiles allow greater outreach whilst maintaining a high degree of stability and rigidity. Being short in travelling length the platform is extremely manoeuvrable in narrow places.
