DSP175

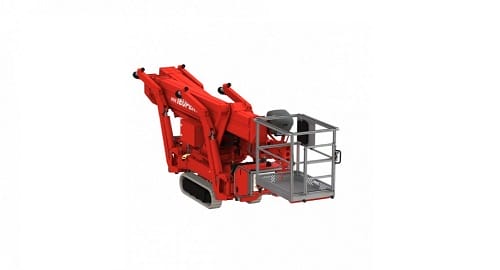

Teupen 18GT
Spider Lift – 17.5m Diesel
The Teupen 18GT Spider lifts provides a working height of 18,3 m and a maximum of 8,5 m horizontal reach. The maximum lift capacity for this Teupen is 200 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
18,30 m
Outreach
8,50 m
Workload Capacity
200 kg
Own weight
2.400 kg
Platform dimensions (d x w)
1,42 x 0,70m
Transport dimensions (d x w x h)
5,12 x 0,78 x 2,00m
Max platform height
16,30 m
Max platform outreach
8,20 m
Up & over height
8,30 m
Recommended number of people
2
Maneuvering at height
No
Usage
Indoor, Outdoor
Lifting Propulsion
Hybrid
Diagram
Downloads
An upgrade in toughness and strength from the well proven

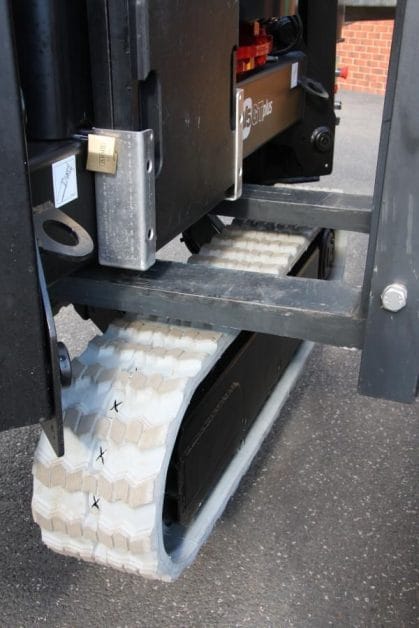

The Teupen Leo 18GT spider lift offers working height of 18m and it wide range of features can fulfill various requirements for indoor and outdoor operations. Its multi-position stabilizer system permits to automatically set up the machine in confined areas and on slopes.The powerful rubber track drive allows maneuvering the spider lift to the millimeter. It also allows to drive the lift through rough terrain and climb steep slopes. Manlift spider lifts are equipped with an electric motor which allow you to work silently and emission free to carry out indoor operations.
