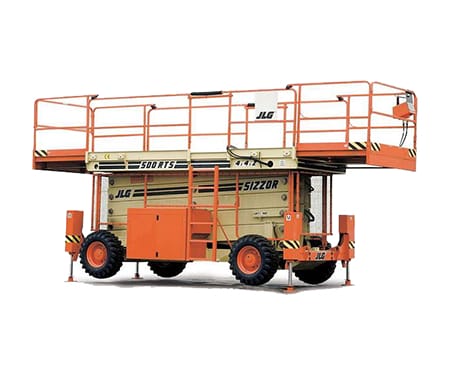

DSW180
JLG 500RTS
Scissor Lift – 18.0m Diesel
International
The Diesel powered JLG 500RTS offers you impressive versatility. With a working height of 17,2 m and a lifting capacity of 1.134 kg, this rental machine gives you exactly what you need to work efficiently. Ideal for Outdoor. The platform is size 4,27 m by 1,80 m.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
17,20 m
Workload Capacity
1.134 kg
Own weight
7.802 kg
Consumption (average / h)
3.1 l/hour
CO2 emission (average / h)
3,23 kg
Platform dimensions (d x w)
4,27 x 1,80m
Transport dimensions (d x w x h)
4,70 x 2,29 x 3,13m
Max platform height
15,20 m
Maneuvering at height
Yes
Gradeability
35,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Downloads
An upgrade in toughness and strength from the well proven
The JLG 500RTS scissor lift provides working height of 7.6 m and is commonly used to work in narrow spaces where one has to move around at heights in order to perform various tasks safely. The 500RTS scissor lift is available in diesel powered scissor lift and is mainly used for outdoor terrain where larger platform is required with more lifting capacity.
