DSW180

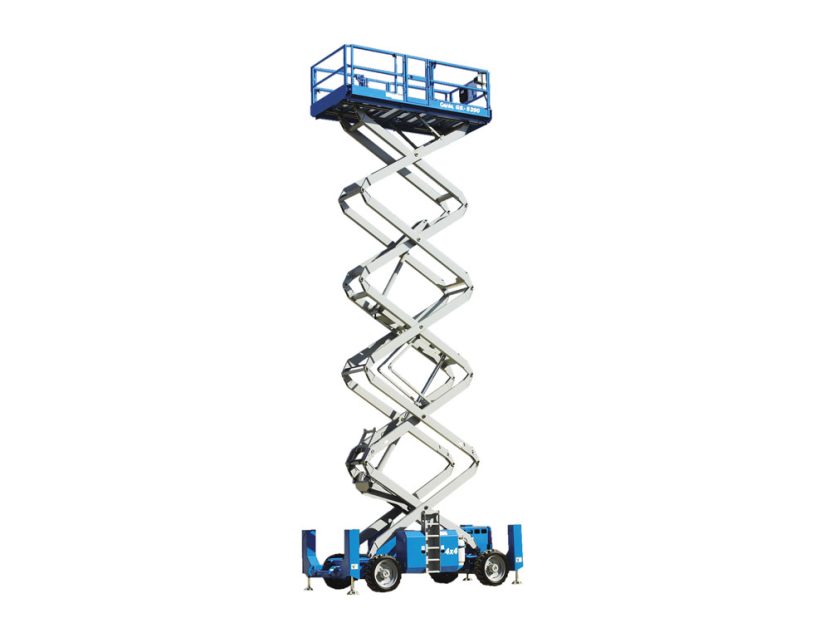

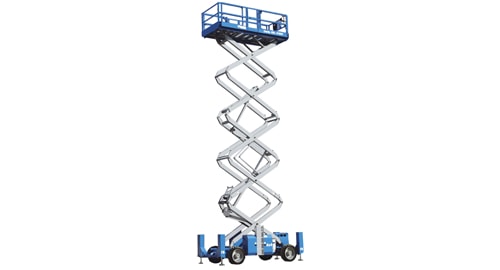

Genie GS5390RT
Scissor Lift – 18.0m Diesel
The Diesel powered Genie GS5390RT offers you impressive versatility. With a working height of 18,15 m and a lifting capacity of 680 kg, this rental machine gives you exactly what you need to work efficiently. Ideal for Outdoor. The platform is size 3,98 m by 1,83 m.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
18,15 m
Workload Capacity
680 kg
Own weight
7.639 kg
Consumption (average / h)
5.4 l/hour
CO2 emission (average / h)
14,42 kg
Platform dimensions (d x w)
3,98 x 1,83m
Transport dimensions (d x w x h)
4,88 x 2,36 x 2,47m
Platform extension length
1,52 m
Max platform height
16,15 m
Recommended number of people
3+
Maneuvering at height
Yes
Gradeability
40,00 %
Usage
Outdoor
Lifting Propulsion
Diesel

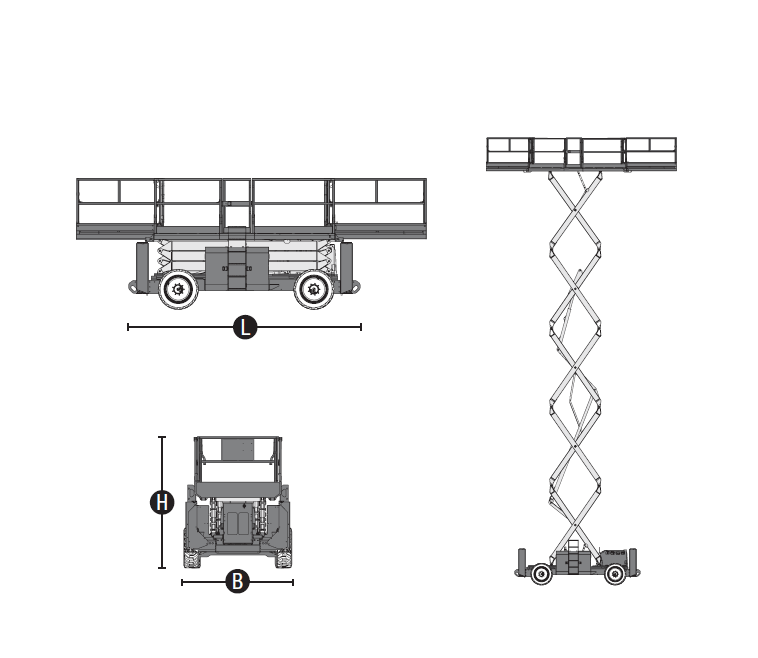

Diagram
Downloads
An upgrade in toughness and strength from the well proven

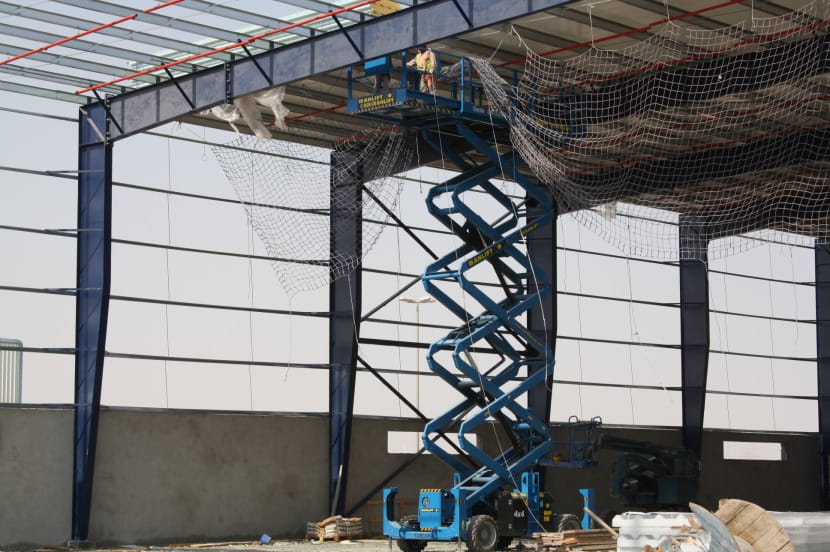

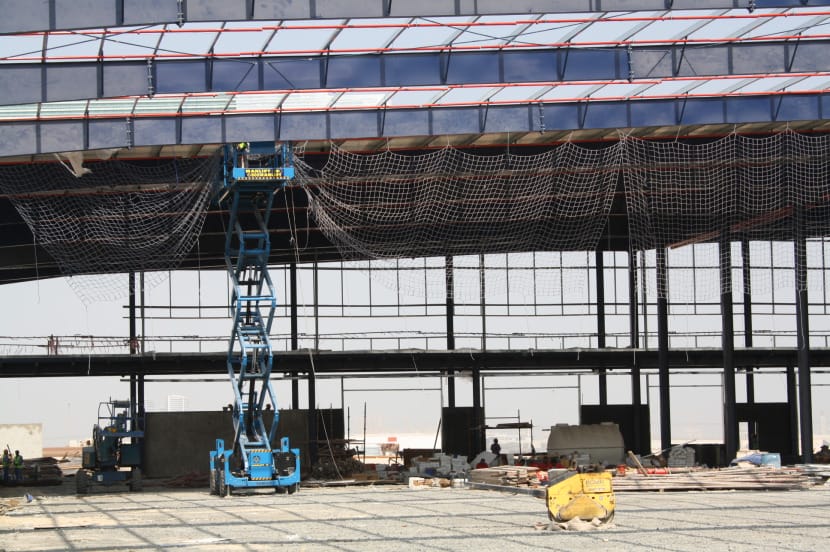

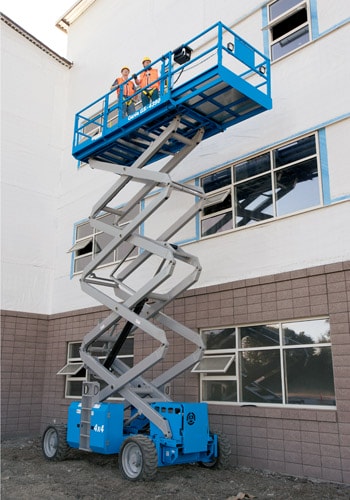

Scissor lift is one of the most frequently used aerial work platforms which is required to work at heights safely. It is useful to perform not only various tasks such as cleaning and painting, but also it is used in many construction and industrial installation applications. The Genie GS5390 RT is diesel powered scissor lift and commonly used for outdoor operations.
Genie’s rough terrain scissor lifts are tough, construction-oriented four-wheel drive machines with positive traction control. Built to tackle the most rigorous jobsite conditions with up to 50% gradeability when driving on slopes. Powered by a Deutz Diesel engine.
