ESN118
JLG 3246ES

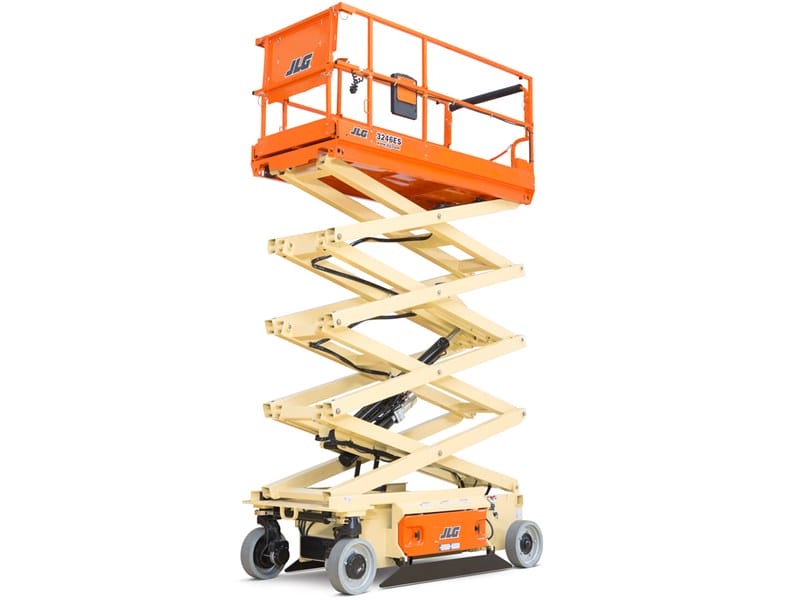

Scissor Lift – 11.8m Electric
The Electric powered JLG 3246ES offers you impressive versatility. With a working height of 11,8 m and a lifting capacity of 320 kg, this rental machine gives you exactly what you need to work efficiently. Ideal for Indoor
Outdoor. The platform is size 2,50 m by 1,12 m.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Electric
Working height
11,80 m
Workload Capacity
320 kg
Own weight
2.549 kg
Consumption (average / h)
8.73 kWh
CO2 emission (average / h)
4,12 kg
Platform dimensions (d x w)
2,50 x 1,12m
Transport dimensions (d x w x h)
2,50 x 1,17 x 2,01m
Platform extension length
0,91 m
Max platform height
9,80 m
Maneuvering at height
Yes
Gradeability
25,00 %
Usage
Outdoor, Indoor
Lifting Propulsion
Electric
Diagram
Downloads
Specification Sheet Manufacturer
JLG 3246ES Specification sheet EN.pdf
03 Feb 2024
BIM Model
MANLIFT-JLG-3246ES-STOWED_POSITION.ifc
11 Apr 2024
BIM Model
MANLIFT-JLG-3246ES-VERTICAL_OUTREACH.ifc
11 Apr 2024
BIM Model
Construction_SiteConstruction_Riwal_JLG_3246ES.rfa
11 Apr 2024
Specification Sheet Manlift
MANLIFT_specsheet_JLG-3246ES_en_manlift.pdf
12 Apr 2024
An upgrade in toughness and strength from the well proven
The JLG 3246ES scissor lift provides working height of 11.68 m and is commonly used to work in narrow spaces where one has to move around at heights in order to perform various tasks safely. Quiter and cleaner operation makes it preferred scissor lift to work indoor. Tight turning radius provides flexibility in moving around narrow spaces. The JLG 3246ES scissor lift is in an electric scissor lift which is can be used indoor/outdoor as it follows zero-emission policy.
