DCT200

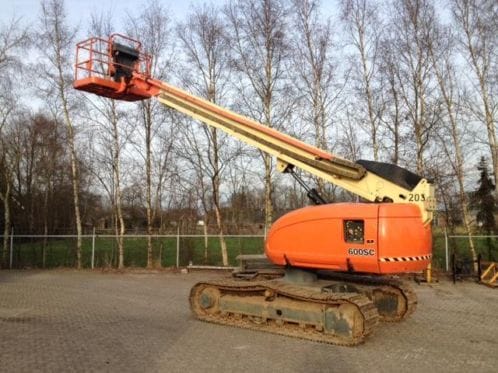

JLG 600SC
Crawler Telescopic Lift – 20.0m Diesel
The JLG 600SC Crawler lifts provides a working height of 20,4 m and a maximum of 13,2 m horizontal reach. The maximum lift capacity for this JLG is 230 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
20,40 m
Outreach
13,20 m
Workload Capacity
230 kg
Own weight
10.230 kg
Consumption (average / h)
7,10 kWh
CO2 emission (average / h)
18,96 kg
Platform dimensions (d x w)
1,83 x 0,91m
Transport dimensions (d x w x h)
8,51 x 2,49 x 2,56m
Max platform height
18,40 m
Max platform outreach
13,20 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
55,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads
Specification Sheet Manufacturer
JLG 600SC Specification sheet EN.pdf
03 Feb 2024
pdf
2.68 mb
BIM Model
Construction_SiteConstruction_Riwal_JLG_EnginePoweredTelescopicBoomLifts_1001156802_600SC_HORIZONTAL_OUTREACH.ifc
03 Feb 2024
ifc
22.15 mb
BIM Model
Construction_SiteConstruction_Riwal_JLG_EnginePoweredTelescopicBoomLifts_1001156802_600SC_PLATFORM_HEIGHT.ifc
03 Feb 2024
ifc
22.13 mb
BIM Model
Construction_SiteConstruction_Riwal_JLG_EnginePoweredTelescopicBoomLifts_1001156802_600SC_STOWED_POSITION.ifc
03 Feb 2024
ifc
22.14 mb
BIM Model
Construction_SiteConstruction_Riwal_JLG_600SC.rfa
11 Apr 2024
rfa
14.85 mb
Specification Sheet Manlift
MANLIFT_specsheet_JLG-600SC_en_QA.pdf
11 Apr 2024
pdf
69.86 kb
An upgrade in toughness and strength from the well proven
The JLG 600SC telescopic crawler lift provides working height of 20.36 m. A single drive/steer joystick allows one-handed operation and its zero turning radius provides freedom to move around the job site easily.The platforms are equipped with an undercarriage on caterpillars and can be used on all types of surfaces. The crawler is ideal for use on sandy or muddy terrains.
