EBA265

JLG E800AJ

Articulated Boom Lift – 26.5m Electric

Ready to rent: our JLG E800AJ Articulated boom lifts provides a working height of 26,5 m and a maximum of 15,7 m horizontal reach. The maximum lift capacity for this JLG is 230 kg.

Rent this machine

Need help with rental?
Safety gear required
Technical data
Driving propulsion
Electric
Working height
26,50 m
Outreach
15,70 m
Workload Capacity
230 kg
Own weight
15.680 kg
Consumption (average / h)
7,10 kWh
CO2 emission (average / h)
3,35 kg
Platform dimensions (d x w)
1,83 x 0,91m
Transport dimensions (d x w x h)
11,12 x 2,44 x 3,00m
Max platform height
24,50 m
Max platform outreach
15,70 m
Up & over height
9,78 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
30,00 %
Charging voltage
380-415 V
Usage
Indoor, Outdoor
Lifting Propulsion
Electric

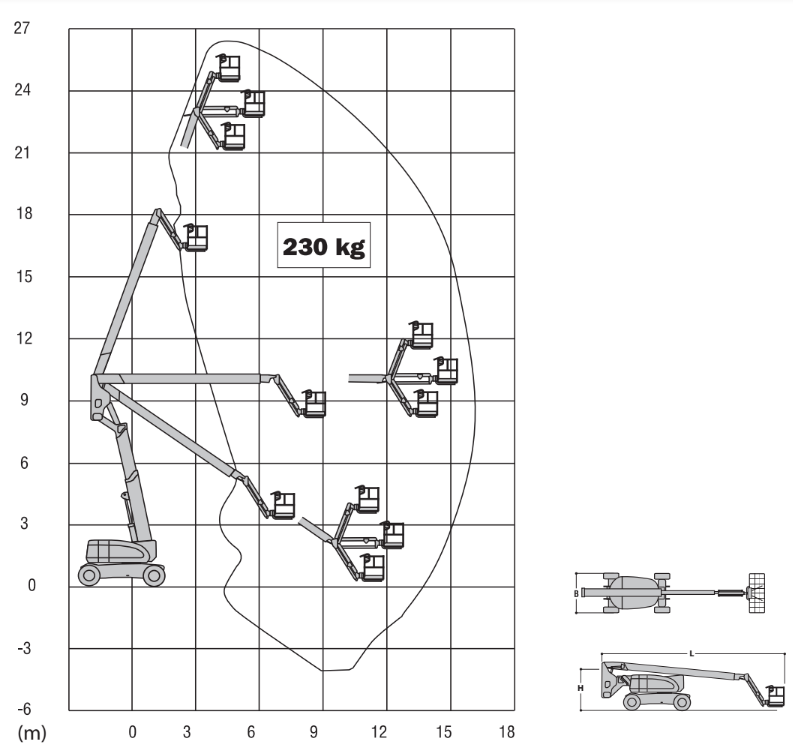

Diagram
Downloads

An upgrade in toughness and strength from the well proven

The JLG E800AJ is the largest electric boom lift offers working height of 26.2 m with reliablity and safety. Articulated Boom Lifts (designed to reach up and over an object, articulated boom lifts have one or even two articulating joints in the main boom enabling the machine to have a large outreach potential.). JLG E800AJ electric boom lifts are mostly used in warehouses, factories, shopping malls and other areas where zero emission standards need to be followed. Advanced Design Electronics System (ADES) reduces your costs by increasing your fuel efficiency and reducing emissions.
