DBA205

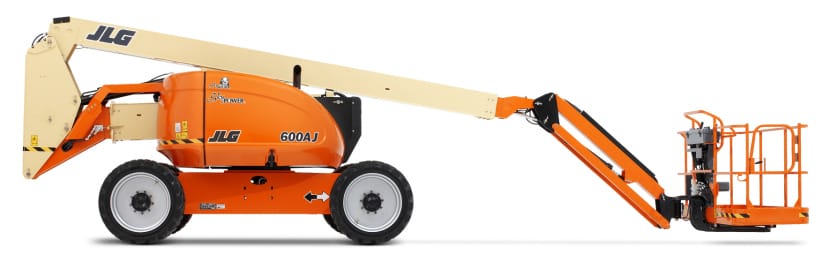

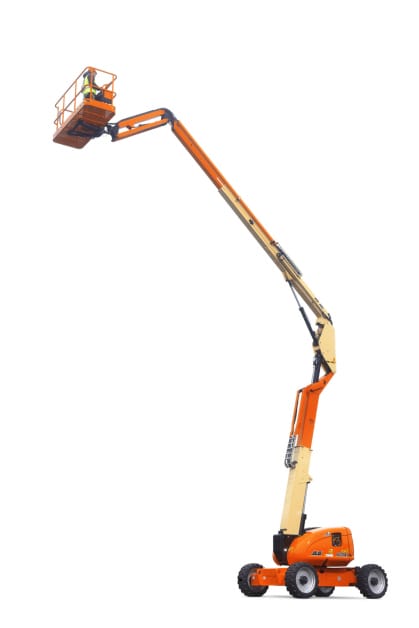

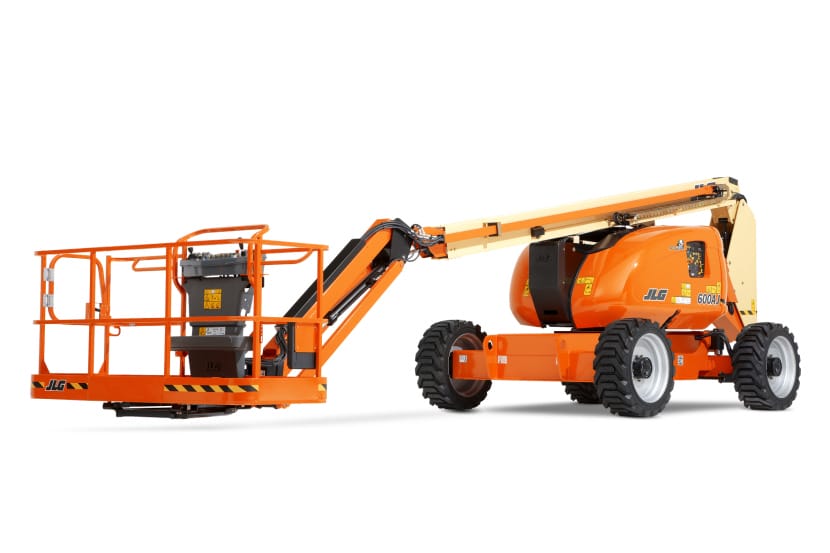

JLG 600AJ

Articulated Boom Lift – 20.5m Diesel

Ready to rent: our JLG 600AJ Articulated boom lifts provides a working height of 20,5 m and a maximum of 12,75 m horizontal reach. The maximum lift capacity for this JLG is 230 kg.

Rent this machine

Need help with rental?
Safety gear required
Technical data
Driving propulsion
Diesel
Working height
20,50 m
Outreach
12,75 m
Workload Capacity
230 kg
Own weight
10.660 kg
Consumption (average / h)
5,40 kWh
CO2 emission (average / h)
14,42 kg
Platform dimensions (d x w)
1,83 x 0,91m
Transport dimensions (d x w x h)
8,82 x 2,49 x 2,57m
Max platform height
18,50 m
Max platform outreach
12,10 m
Up & over height
8,09 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
30,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads

An upgrade in toughness and strength from the well proven

The JLG 600AJ articulating boom lift provides working height of 20.46 m with great deal of flexilblity. Articulated Boom Lifts (designed to reach up and over an object, articulated boom lifts have one or even two articulating joints in the main boom enabling the machine to have a large outreach potential). Diesel powered JLG 600AJ are highly suitable for outside jobs that require flexible machinery to take your staff and equipment up in the air safely. They can be deployed in areas with little maneuvering space and on rough terrain.Optional articulating jib gets you into hard-to-reach places.

Narrow chassis option for easy of mobility in congested work areas. Choice of jib or non jib models for increased versatility. Optional four wheel drive with oscillating axle for superb terrain performance.
