DBA180

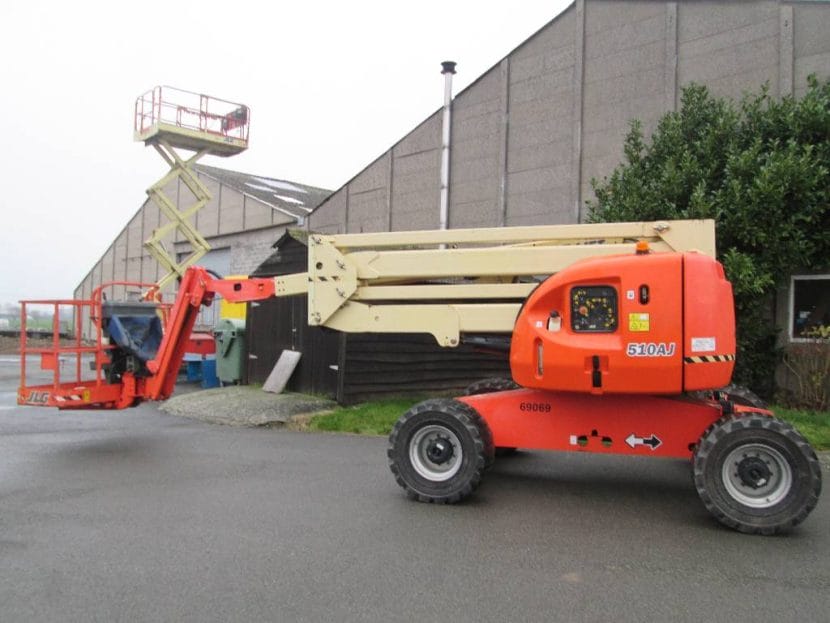

JLG 510AJ
Articulated Boom Lift – 18.0m Diesel
Ready to rent: our JLG 510AJ Articulated boom lifts provides a working height of 17,81 m and a maximum of 9,5 m horizontal reach. The maximum lift capacity for this JLG is 230 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
17,81 m
Outreach
9,50 m
Workload Capacity
230 kg
Own weight
7.300 kg
Consumption (average / h)
8,30 kWh
CO2 emission (average / h)
22,16 kg
Platform dimensions (d x w)
1,83 x 0,76m
Transport dimensions (d x w x h)
7,77 x 2,35 x 2,27m
Max platform height
15,81 m
Max platform outreach
9,50 m
Up & over height
7,60 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
45,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads
Specification Sheet Manufacturer
JLG 510AJ Specification sheet ES.pdf
03 Feb 2024
pdf
46.12 kb
BIM Model
MANLIFT_Construction_SiteConstruction_JLG_510AJ_HORIZONTAL_POSITION.ifc
11 Apr 2024
ifc
16.40 mb
BIM Model
MANLIFT_Construction_SiteConstruction_JLG_510AJ_STOWED_POSITION.ifc
11 Apr 2024
ifc
16.40 mb
BIM Model
MANLIFT_Construction_SiteConstruction_JLG_510AJ_VERTICAL_POSITION.ifc
11 Apr 2024
ifc
16.39 mb
BIM Model
MANLIFT-JLG-510AJ.rfa
11 Apr 2024
rfa
13.44 mb
Specification Sheet Manlift
MANLIFT_specsheet_JLG-510AJ_en_QA.pdf
11 Apr 2024
pdf
67.52 kb
An upgrade in toughness and strength from the well proven

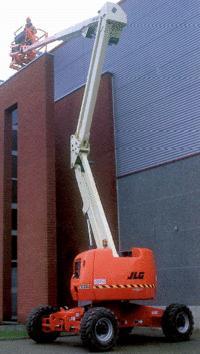

The JLG 510 AJ articulating boom lift provides working height of 17.5 m with great deal of flexilblity. Articulated Boom Lifts (designed to reach up and over an object, articulated boom lifts have one or even two articulating joints in the main boom enabling the machine to have a large outreach potential). Diesel powered JLG 510 AJ are highly suitable for outside jobs that require flexible machinery to take your staff and equipment up in the air safely. They can be deployed in areas with little maneuvering space and on rough terrain. Compact Dimensions and Zero Tailswing allows it to reach in narrow spaces.
