DBA160

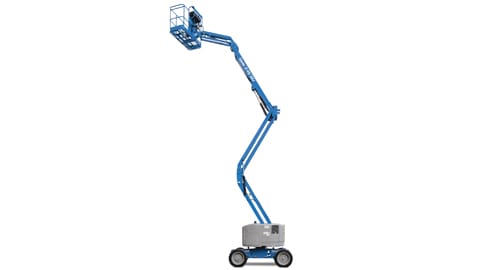

Genie Z45/25JRT

Articulated Boom Lift – 16.0m Diesel

Ready to rent: our Genie Z45/25JRT Articulated boom lifts provides a working height of 16,05 m and a maximum of 8,19 m horizontal reach. The maximum lift capacity for this Genie is 227 kg.

Rent this machine

Need help with rental?
Safety gear required
Technical data
Driving propulsion
Diesel
Working height
16,05 m
Outreach
8,19 m
Workload Capacity
227 kg
Own weight
6.123 kg
Consumption (average / h)
5,40 kWh
CO2 emission (average / h)
14,42 kg
Platform dimensions (d x w)
0,76 x 1,83m
Transport dimensions (d x w x h)
6,65 x 2,29 x 2,13m
Max platform height
14,05 m
Max platform outreach
7,59 m
Up & over height
7,14 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
30,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads

An upgrade in toughness and strength from the well proven

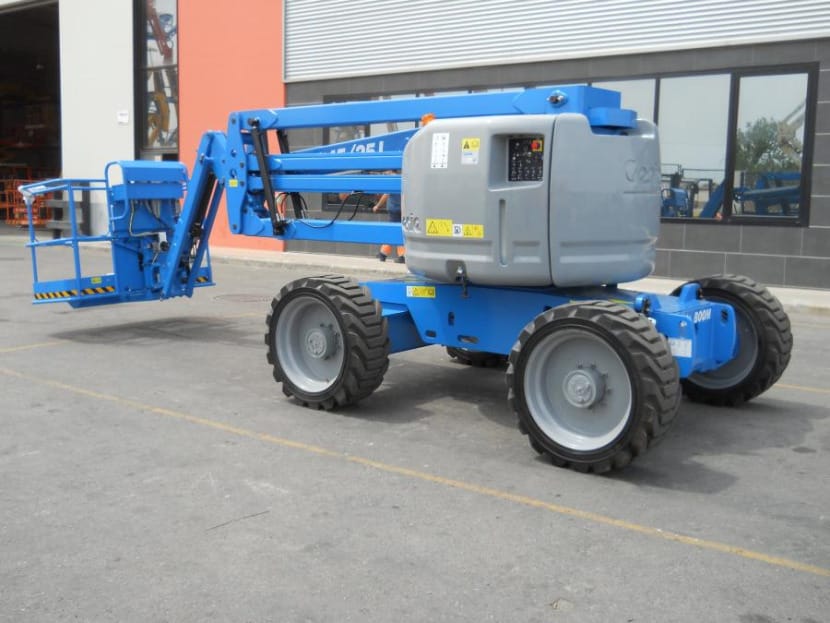

The Genie Z45/25JRT articulating boom lift provides working height of 15.87 m provide lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none. Hydraulic rotation lets you move the platform where you need it. Self-leveling feature keeps the platform level through the entire range of motion. Genie Z45/25JRT diesel boom lift can be deployed in areas with little maneuvering space and on rough terrain.
