HBA155

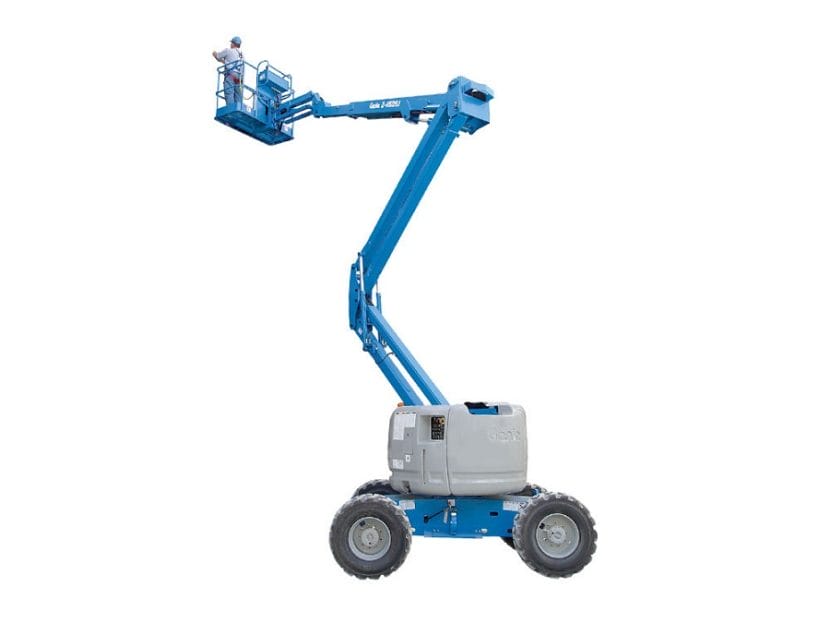

Genie Z45/25BI
Articulated Boom Lift – 15.5m Hybrid
Ready to rent: our Genie Z45/25BI Articulated boom lifts provides a working height of 15,87 m and a maximum of 7,6 m horizontal reach. The maximum lift capacity for this Genie is 227 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Hybrid
Working height
15,87 m
Outreach
7,60 m
Workload Capacity
227 kg
Own weight
7.190 kg
Platform dimensions (d x w)
0,76 x 1,83m
Transport dimensions (d x w x h)
5,56 x 1,79 x 2,00m
Max platform height
13,87 m
Max platform outreach
7,60 m
Up & over height
7,04 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
30,00 %
Usage
Indoor
Lifting Propulsion
Hybrid

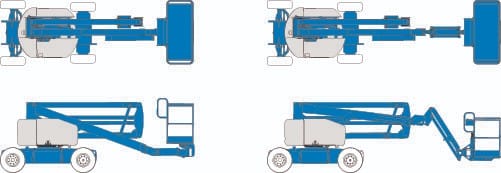

Diagram
Downloads
An upgrade in toughness and strength from the well proven
Do you have a job or project where you need an articulating boom lift? You can hire an articulating boom lift from Riwal on attractive price/quality terms. The articulating boom lift is perfect for jobs where there are obstacles at height and is also perfectly suitable for inside use. Have a look at our below listed wide range. Please do not hesitate to contact us if you need any advice. We’d be delighted to tell you more about the benefits of articulating boom lift rental!
