EBA155
Genie Z45/25JDC
Articulated Boom Lift – 15.5m Electric
Ready to rent: our Genie Z45/25JDC Articulated boom lifts provides a working height of 15,94 m and a maximum of 7,6 m horizontal reach. The maximum lift capacity for this Genie is 227 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Electric
Working height
15,94 m
Outreach
7,60 m
Workload Capacity
227 kg
Own weight
7.394 kg
Consumption (average / h)
6,20 kWh
CO2 emission (average / h)
2,93 kg
Platform dimensions (d x w)
0,76 x 1,83m
Transport dimensions (d x w x h)
6,83 x 1,79 x 2,00m
Max platform height
13,94 m
Max platform outreach
7,60 m
Up & over height
7,24 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
30,00 %
Usage
Indoor, Outdoor
Lifting Propulsion
Electric
Diagram
Downloads
An upgrade in toughness and strength from the well proven

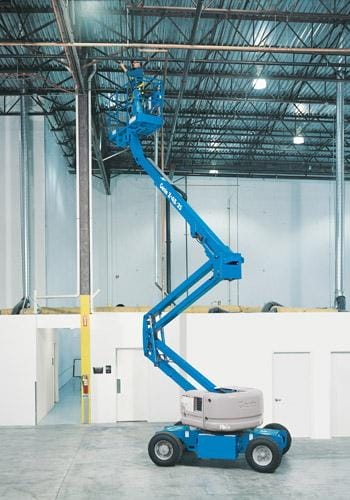

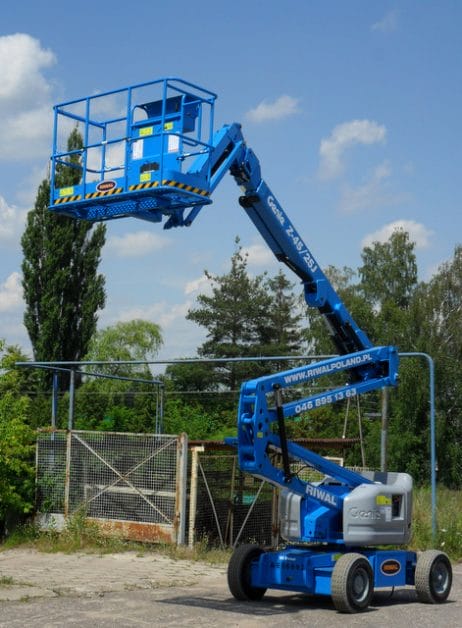

The Genie Z45/25JDC articulating boom lift provides working height of 15.87m provide lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none. Genie Z45/25JDC electric boom lift highly recommened to be used in warehouses, factories, shopping malls and other areas where zero emission standards need to be followed.
