EBA135

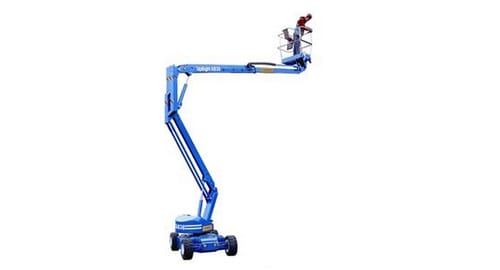

Upright AB38
Articulated Boom Lift – 13.5m Electric
Ready to rent: our Upright AB38 Articulated boom lifts provides a working height of 13,52 m and a maximum of 6 m horizontal reach. The maximum lift capacity for this Upright is 215 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Electric
Working height
13,52 m
Outreach
6,00 m
Workload Capacity
215 kg
Own weight
3.550 kg
Consumption (average / h)
7.47 kWh
CO2 emission (average / h)
1,38 kg
Platform dimensions (d x w)
0,60 x 1,20 m
Transport dimensions (d x w x h)
4,04 x 1,50 x 2,00 m
Max platform height
11,52 m
Max platform outreach
6,00 m
Up & over height
5,40 m
Recommended number of people
2
Maneuvering at height
Yes
Charging voltage
220-240 V
Usage
Indoor
Lifting Propulsion
Electric
Diagram
Downloads
An upgrade in toughness and strength from the well proven
The UPRIGHT AB38 is a reliable articulating boom lift which offers working height of 13.05m. With low weight this battery powered platform comes with non-marking tyres and its overall size allow one to move around in narrow spaces quite easily. Articulated Boom Lifts (designed to reach up and over an object, articulated boom lifts have one or even two articulating joints in the main boom enabling the machine to have a large outreach potential.). UPRIGHT AB38 boom lifts are mostly used to perform indoor operations such as maintenance, cleaning, warehouses and more.
