EVM125

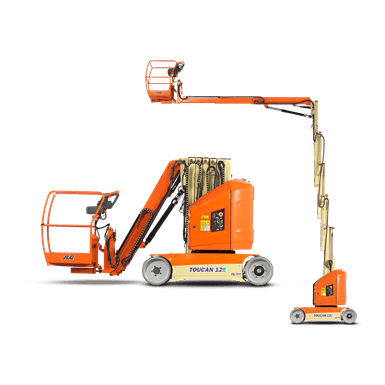

JLG T12E+
Vertical Mast Lift – 12.5m Electric
The Electric powered JLG T12E+ offers you impressive versatility. With a working height of 12,7 m and a lifting capacity of 200 kg, this rental machine gives you exactly what you need to work efficiently. Ideal for Indoor
Outdoor. The platform is size 1,05 m by 0,70 m.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Electric
Working height
12,70 m
Workload Capacity
200 kg
Own weight
4.900 kg
Platform dimensions (d x w)
1,05 x 0,70m
Transport dimensions (d x w x h)
3,65 x 1,20 x 1,99m
Max platform height
10,70 m
Recommended number of people
1
Maneuvering at height
Yes
Gradeability
25,00 %
Usage
Indoor, Outdoor
Lifting Propulsion
Electric
Diagram
Downloads
Specification Sheet Manufacturer
JLG T12E+ Specification sheet EN.pdf
15 Feb 2024
pdf
1.18 mb
BIM Model
Construction_SiteConstruction_Riwal_JLG_ToucanMastBoomLifts_1001150411_T12E+_HORIZONTAL_OUTREACH.ifc
15 Feb 2024
ifc
17.20 mb
BIM Model
Construction_SiteConstruction_Riwal_JLG_ToucanMastBoomLifts_1001150411_T12E+_STOWED_POSITION.ifc
15 Feb 2024
ifc
17.20 mb
BIM Model
Construction_SiteConstruction_Riwal_JLG_ToucanMastBoomLifts_1001150411_T12E+_VERTICAL_OUTREACH.ifc
15 Feb 2024
ifc
17.21 mb
BIM Model
Construction_SiteConstruction_Riwal_JLG_T12E+.rfa
11 Apr 2024
rfa
69.09 mb
Specification Sheet Manlift
MANLIFT_specsheet_JLG-T12E+_en_manlift.pdf
12 Apr 2024
pdf
113.99 kb
An upgrade in toughness and strength from the well proven
A vertical aerial work platform is small, easy to operate and ifeal if you need to carry out work on, for example, ceilings. Single man lifts are particularly suitable for cleaning activities. Because the vertical aerial work platform can be operated sideways as well as up and down, it gives you a very comfortable reach. The single man lift’s oscillating cage also supports this.
