Haulotte Telescopic Boom Lift - 20.5m Diesel| Haulotte H21TX Diesel

DBT205

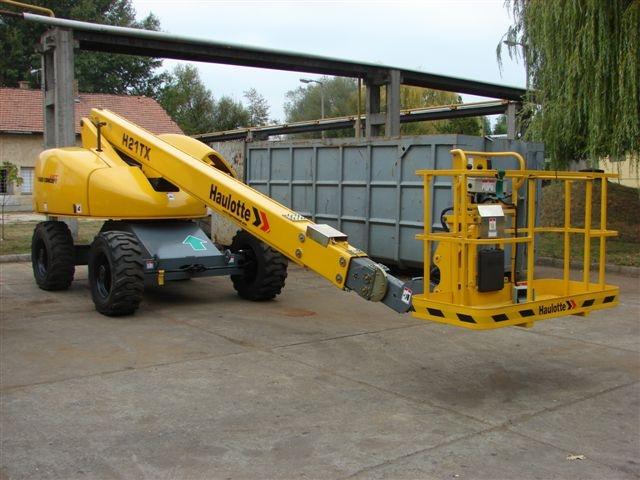

Haulotte H21TX

Telescopic Boom Lift – 20.5m Diesel

Ready to rent: our Haulotte H21TX Telescopic boom lifts provides a working height of 20,8 m and a maximum of 17,2 m horizontal reach. The maximum lift capacity for this Haulotte is 230 kg.

Rent this machine

Need help with rental?
Safety gear required
Technical data
Driving propulsion
Diesel
Working height
20,80 m
Outreach
17,20 m
Workload Capacity
230 kg
Own weight
11.750 kg
Consumption (average / h)
5.2 l/hour
CO2 emission (average / h)
5,41 kg
Platform dimensions (d x w)
1,80 x 0,80m
Transport dimensions (d x w x h)
9,10 x 2,48 x 2,86m
Max platform height
18,80 m
Max platform outreach
17,20 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
40,00 %
Usage
Outdoor, Offroad
Lifting Propulsion
Diesel
Diagram
Downloads

An upgrade in toughness and strength from the well proven

The Haulotte H21TX is a reliable telescopic boom lift which offers working height of 20.8 m. For proper maneuvering and mobility, this lift has 4-wheel drive, an oscillating shaft and a steering wheel that affects all the wheels. In addition, the electrical telescopic boom lift is suited for indoor and outdoor use. Its capacity to reach over obstacles and to work at heights allows you to use this machine in various environments: in department stores, factories and shopping centres. The narrow varieties of the telescopic boom lift are capable of operating on narrow pathways. The automatic traction control (ATC) function allows you to drive the machine over obstacles and non-smooth surfaces.
