DSP300
Teupen 30T
Spider Lift – 30.0m Diesel
The Teupen 30T Spider lifts provides a working height of 30 m and a maximum of 15 m horizontal reach. The maximum lift capacity for this Teupen is 200 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
30,00 m
Outreach
15,00 m
Workload Capacity
200 kg
Own weight
4.225 kg
Platform dimensions (d x w)
1,20 x 0,80m
Transport dimensions (d x w x h)
7,20 x 1,58 x 1,98m
Max platform height
28,00 m
Max platform outreach
15,00 m
Up & over height
2,00 m
Maneuvering at height
No
Usage
Outdoor, Offroad
Lifting Propulsion
Electric

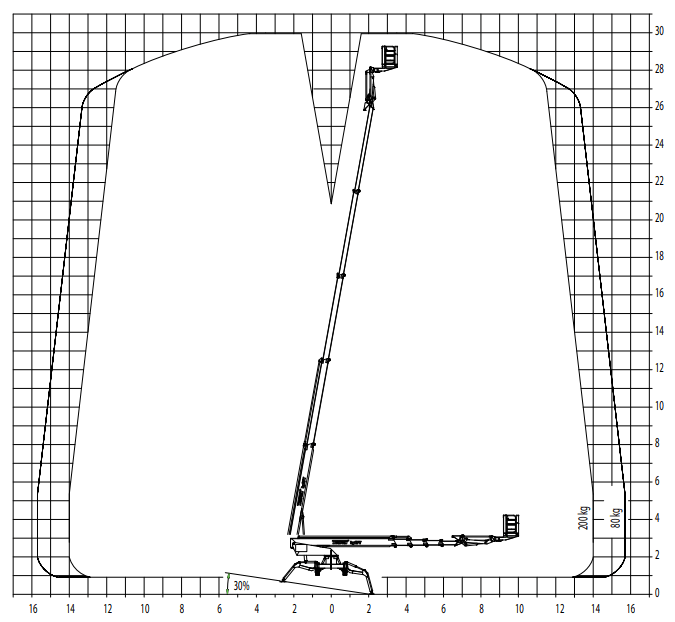

Diagram
Downloads
An upgrade in toughness and strength from the well proven
Riwal has an extensive rentals fleet. We have a very broad range of spider lifts, and can provide companies in various industries with the right spider lift. Our spider lifts are low in weight and, thanks to caterpillar tracks, can be deployed in virtually any location. The most suitable spider lift for you depends on the reach you need to achieve.
