DBA260

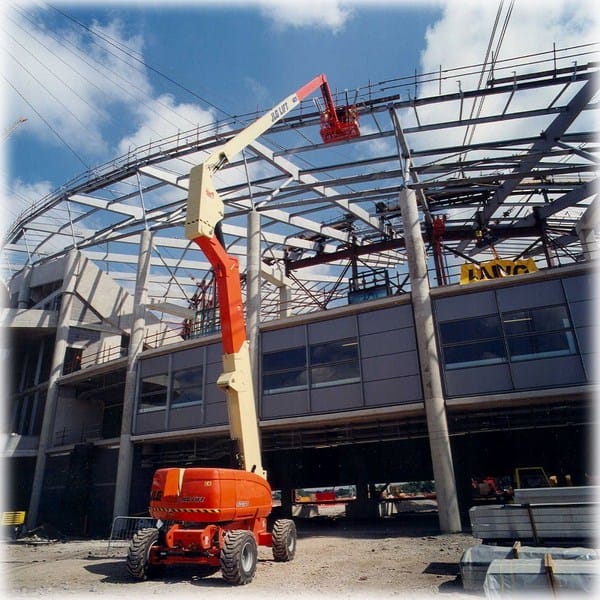

JLG 800AJ
Articulated Boom Lift – 26.0m Diesel
Ready to rent: our JLG 800AJ Articulated boom lifts provides a working height of 26,4 m and a maximum of 15,7 m horizontal reach. The maximum lift capacity for this JLG is 230 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
26,40 m
Outreach
15,70 m
Workload Capacity
230 kg
Own weight
16.110 kg
Consumption (average / h)
7,10 kWh
CO2 emission (average / h)
18,96 kg
Platform dimensions (d x w)
1,83 x 0,91m
Transport dimensions (d x w x h)
11,13 x 2,49 x 3,00m
Max platform height
24,40 m
Max platform outreach
15,70 m
Up & over height
9,78 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
30,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads
Specification Sheet Manufacturer
JLG 800AJ Specification sheet EN.pdf
03 Feb 2024
pdf
246.01 kb
BIM Model
MANLIFT-JLG-800AJ-HORIZONTAL_OUTREACH.ifc
11 Apr 2024
ifc
14.21 mb
BIM Model
MANLIFT-JLG-800AJ-STOWED_POSITION.ifc
11 Apr 2024
ifc
14.21 mb
BIM Model
MANLIFT-JLG-800AJ-VERTICAL_OUTREACH.ifc
11 Apr 2024
ifc
14.20 mb
BIM Model
Construction_Lifts_Riwal_EnginePoweredArticulatingBoomLifts_1001156800_800AJ.rfa
11 Apr 2024
rfa
8.82 mb
Specification Sheet Manlift
MANLIFT_specsheet_JLG-800AJ_en_IN.pdf
11 Apr 2024
pdf
70.91 kb
An upgrade in toughness and strength from the well proven
Do you have a job or project where you need an articulating boom lift? You can hire an articulating boom lift from Riwal on attractive price/quality terms. The articulating boom lift is perfect for jobs where there are obstacles at height and is also perfectly suitable for inside use. Have a look at our below listed wide range. Please do not hesitate to contact us if you need any advice. We’d be delighted to tell you more about the benefits of articulating boom lift rental!
