DBA260

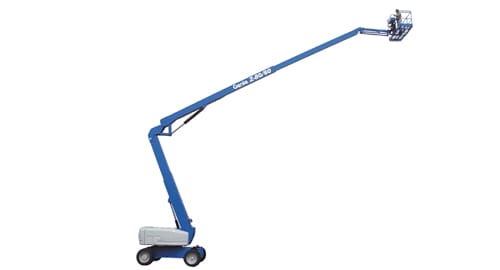

Genie Z80/60RT
Articulated Boom Lift – 26.0m Diesel
Ready to rent: our Genie Z80/60RT Articulated boom lifts provides a working height of 25,77 m and a maximum of 18,3 m horizontal reach. The maximum lift capacity for this Genie is 227 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
25,77 m
Outreach
18,30 m
Workload Capacity
227 kg
Own weight
16.284 kg
Consumption (average / h)
5.4 l/hour
CO2 emission (average / h)
5,62 kg
Platform dimensions (d x w)
0,91 x 2,44m
Transport dimensions (d x w x h)
11,27 x 2,49 x 3,00m
Max platform height
23,77 m
Max platform outreach
18,30 m
Up & over height
8,83 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
45,00 %
Usage
Outdoor, Indoor
Lifting Propulsion
Diesel
Diagram
Downloads
An upgrade in toughness and strength from the well proven
The GenieZ80/60 articulating boom lift provides working height of 23.8 m. Genie’s engine-powered articulating Z booms provide lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none. Quiet diesel engine options for increased performance, gradeability and terrainability. Genie Z80/60 diesel boom lift can be deployed in areas with little maneuvering space and on rough terrain.
