DBA180

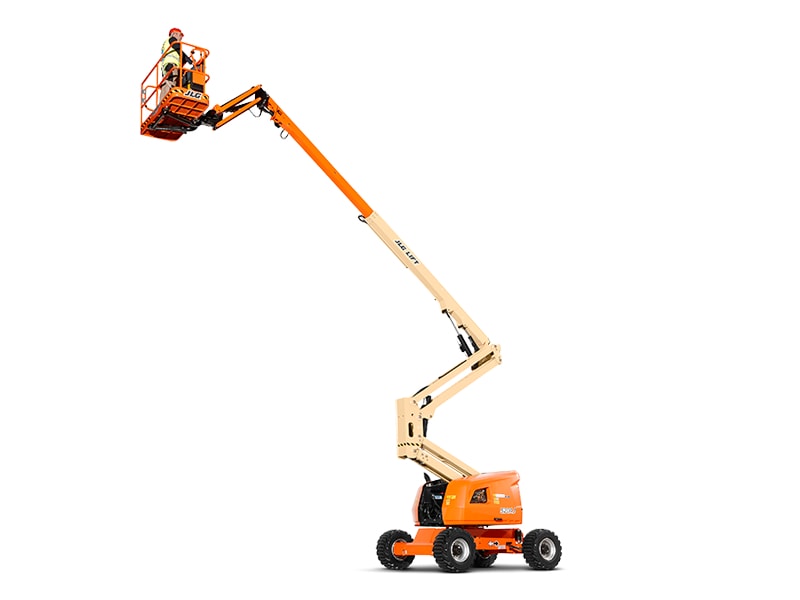

JLG 520AJ
Articulated Boom Lift – 18.0m Diesel
Ready to rent: our JLG 520AJ Articulated boom lifts provides a working height of 18 m and a maximum of 10 m horizontal reach. The maximum lift capacity for this JLG is 250 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
18,00 m
Outreach
10,00 m
Workload Capacity
250 kg
Own weight
7.985 kg
Consumption (average / h)
8,30 kWh
CO2 emission (average / h)
22,16 kg
Platform dimensions (d x w)
1,83 x 0,76m
Transport dimensions (d x w x h)
7,77 x 2,35 x 2,27m
Max platform height
16,00 m
Max platform outreach
10,00 m
Up & over height
7,30 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
45,00 %
Usage
Outdoor
Lifting Propulsion
Diesel

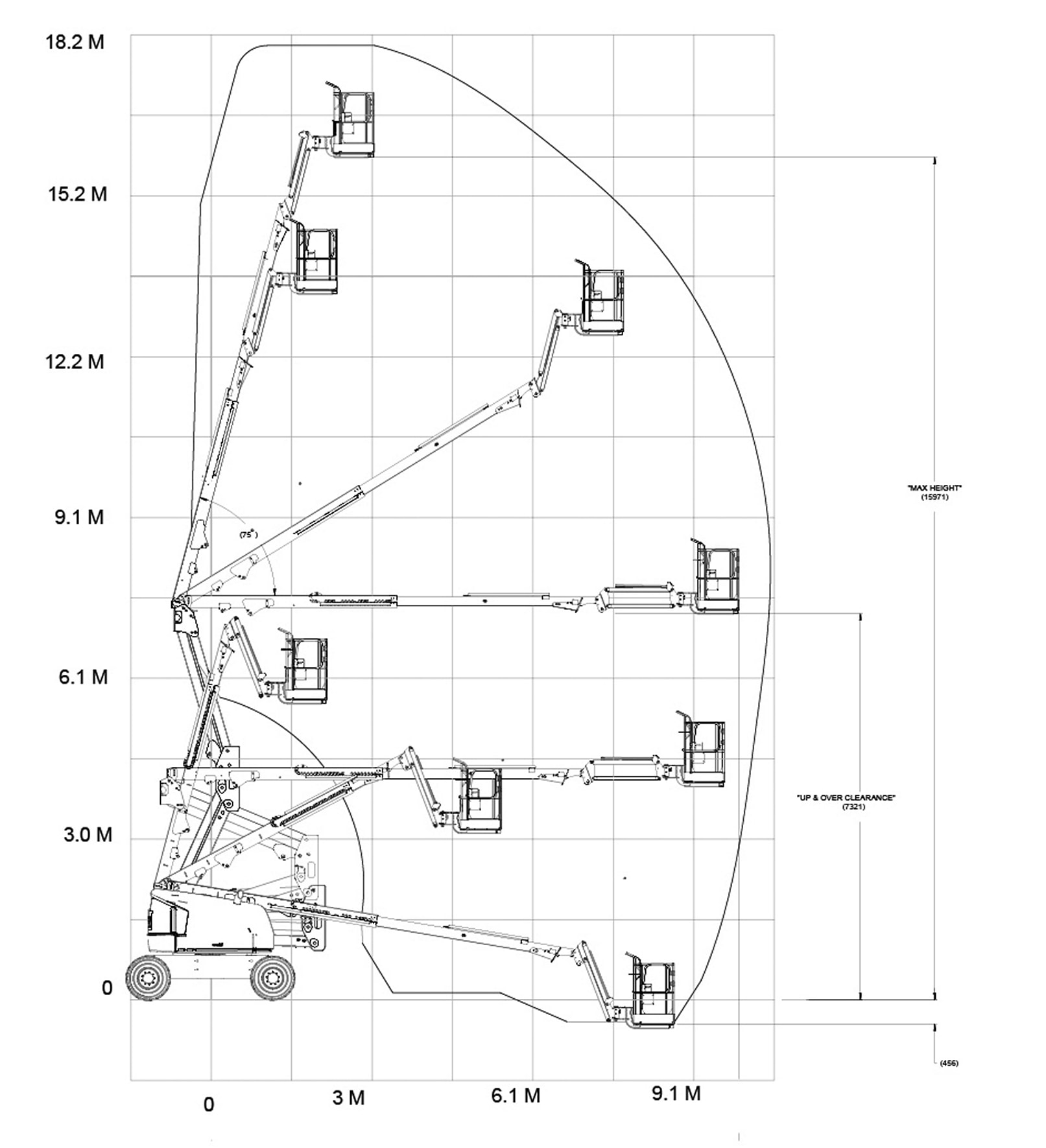

Diagram
Downloads
Specification Sheet Manufacturer
JLG 520AJ Specification sheet EN.pdf
03 Feb 2024
pdf
1.98 mb
BIM Model
MANLIFT_Construction_SiteConstruction_JLG_520AJ_HORIZONTAL_POSITION.ifc
11 Apr 2024
ifc
18.93 mb
BIM Model
MANLIFT_Construction_SiteConstruction_JLG_520AJ_STOWED_POSITION.ifc
11 Apr 2024
ifc
18.91 mb
BIM Model
MANLIFT_Construction_SiteConstruction_JLG_520AJ_VERTICAL_POSITION.ifc
11 Apr 2024
ifc
18.94 mb
BIM Model
MANLIFT-JLG-520AJ.rfa
11 Apr 2024
rfa
17.25 mb
Specification Sheet Manlift
MANLIFT_specsheet_JLG-520AJ_en_IN.pdf
11 Apr 2024
pdf
75.19 kb
An upgrade in toughness and strength from the well proven
Do you have a job or project where you need an articulating boom lift? You can hire an articulating boom lift from Riwal on attractive price/quality terms. The articulating boom lift is perfect for jobs where there are obstacles at height and is also perfectly suitable for inside use. Have a look at our below listed wide range. Please do not hesitate to contact us if you need any advice. We’d be delighted to tell you more about the benefits of articulating boom lift rental!
