DBA125

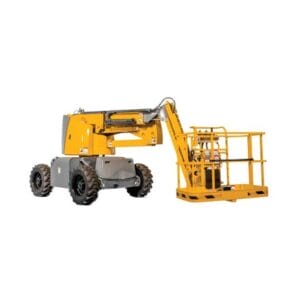

Haulotte HA12PX
Articulated Boom Lift – 12.5m Diesel
Ready to rent: our Haulotte HA12PX Articulated boom lifts provides a working height of 12,3 m and a maximum of 10,4 m horizontal reach. The maximum lift capacity for this Haulotte is 230 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
12,30 m
Outreach
10,40 m
Workload Capacity
230 kg
Own weight
5.540 kg
Consumption (average / h)
3.4 l/hour
CO2 emission (average / h)
3,54 kg
Platform dimensions (d x w)
1,20 x 0,80m
Transport dimensions (d x w x h)
5,64 x 1,85 x 2,14m
Max platform height
10,30 m
Max platform outreach
10,40 m
Up & over height
5,70 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
40,00 %
Usage
Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads
An upgrade in toughness and strength from the well proven
Do you have a job or project where you need an articulating boom lift? You can hire an articulating boom lift from Riwal on attractive price/quality terms. The articulating boom lift is perfect for jobs where there are obstacles at height and is also perfectly suitable for inside use. Have a look at our below listed wide range. Please do not hesitate to contact us if you need any advice. We’d be delighted to tell you more about the benefits of articulating boom lift rental!
