DBT585

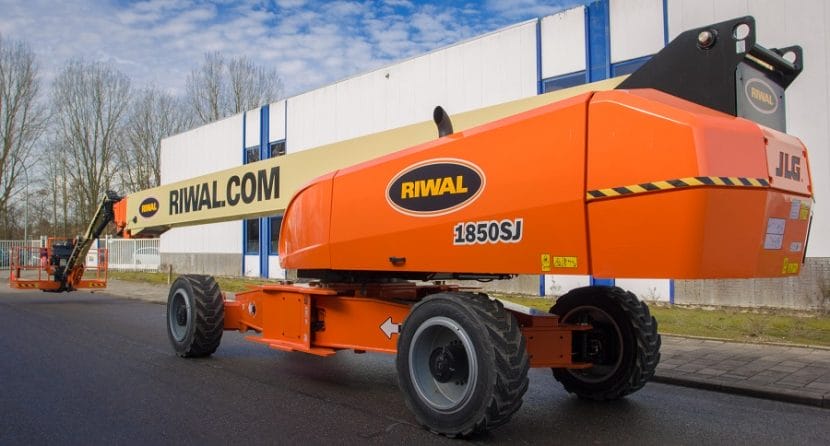

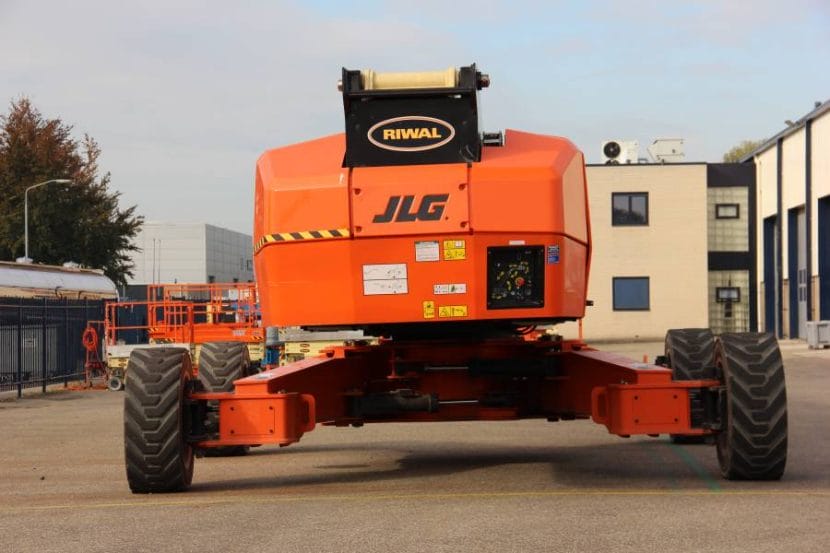

JLG 1850SJ
Telescopic Boom Lift – 58.5m Diesel
Ready to rent: our JLG 1850SJ Telescopic boom lifts provides a working height of 58,6 m and a maximum of 24,4 m horizontal reach. The maximum lift capacity for this JLG is 454 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
58,60 m
Outreach
24,40 m
Workload Capacity
454 kg
Own weight
27.351 kg
Consumption (average / h)
11,00 kWh
CO2 emission (average / h)
29,37 kg
Platform dimensions (d x w)
2,44 x 0,91m
Transport dimensions (d x w x h)
19,44 x 2,49 x 3,05m
Max platform height
56,60 m
Max platform outreach
24,40 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
40,00 %
Usage
Outdoor, Offroad
Lifting Propulsion
Diesel
Diagram
Downloads
Specification Sheet Manufacturer
JLG 1850SJ Specification sheet EN.pdf
03 Feb 2024
pdf
425.42 kb
BIM Model
MANLIFT_Construction_SiteConstruction_JLG_1850SJ_HORIZONTAL_POSITION.ifc
11 Apr 2024
ifc
20.34 mb
BIM Model
MANLIFT_Construction_SiteConstruction_JLG_1850SJ_STOWED_POSITION.ifc
11 Apr 2024
ifc
20.34 mb
BIM Model
MANLIFT_Construction_SiteConstruction_JLG_1850SJ_VERTICAL_POSITION.ifc
11 Apr 2024
ifc
20.35 mb
BIM Model
MANLIFT-JLG-1850SJ.rfa
11 Apr 2024
rfa
16.08 mb
Specification Sheet Manlift
MANLIFT_specsheet_JLG-1850SJ_en_AE.pdf
11 Apr 2024
pdf
75.27 kb
An upgrade in toughness and strength from the well proven

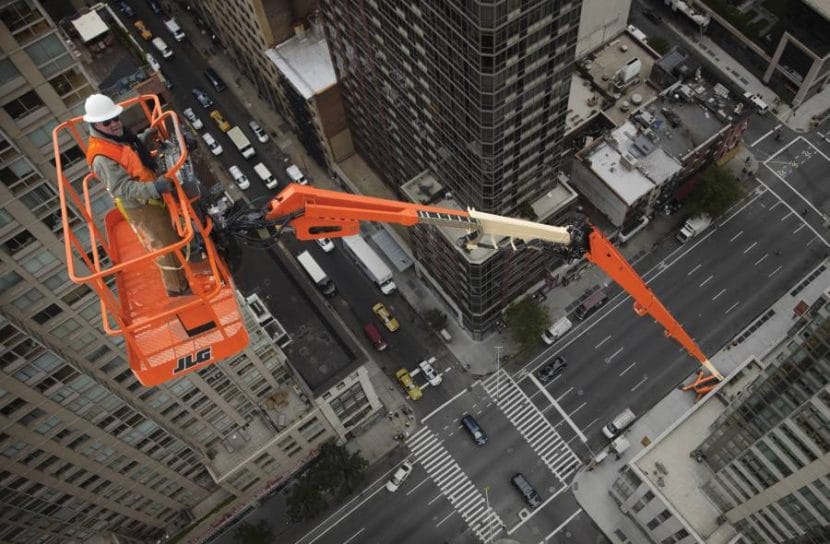

The JLG 1850SJ is the largest telescopic boom lift offers working height of 58.56 m with reliablity and safety. The JLG 1850SJ ultra boom lift is much faster to full height, so operators can spend more time working and less time positioning the boom. The axles take approximately one minute to extend or retract. They’re able to pivot in and out and do not telescope like extendable. The Telescoping jib and five section boom provides over 2.9million cubic feet of work area and greater ability to reach up and over. An LCD screen shows operators where they are in the work envelope along with other useful information.
