JLG 1200SJP

Telescopic Boom Lift – 38.5m Diesel

Ready to rent: our JLG 1200SJP Telescopic boom lifts provides a working height of 38,73 m and a maximum of 22,86 m horizontal reach. The maximum lift capacity for this JLG is 454 kg.

Rent this machine

Need help with rental?
Safety gear required
Technical data
Driving propulsion
Diesel
Working height
38,73 m
Outreach
22,86 m
Workload Capacity
454 kg
Own weight
18.500 kg
Consumption (average / h)
10,30 kWh
CO2 emission (average / h)
27,50 kg
Platform dimensions (d x w)
2,44 x 0,91m
Transport dimensions (d x w x h)
13,67 x 2,49 x 3,05m
Max platform height
36,58 m
Max platform outreach
22,86 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
45,00 %
Usage
Outdoor, Offroad
Lifting Propulsion
Diesel

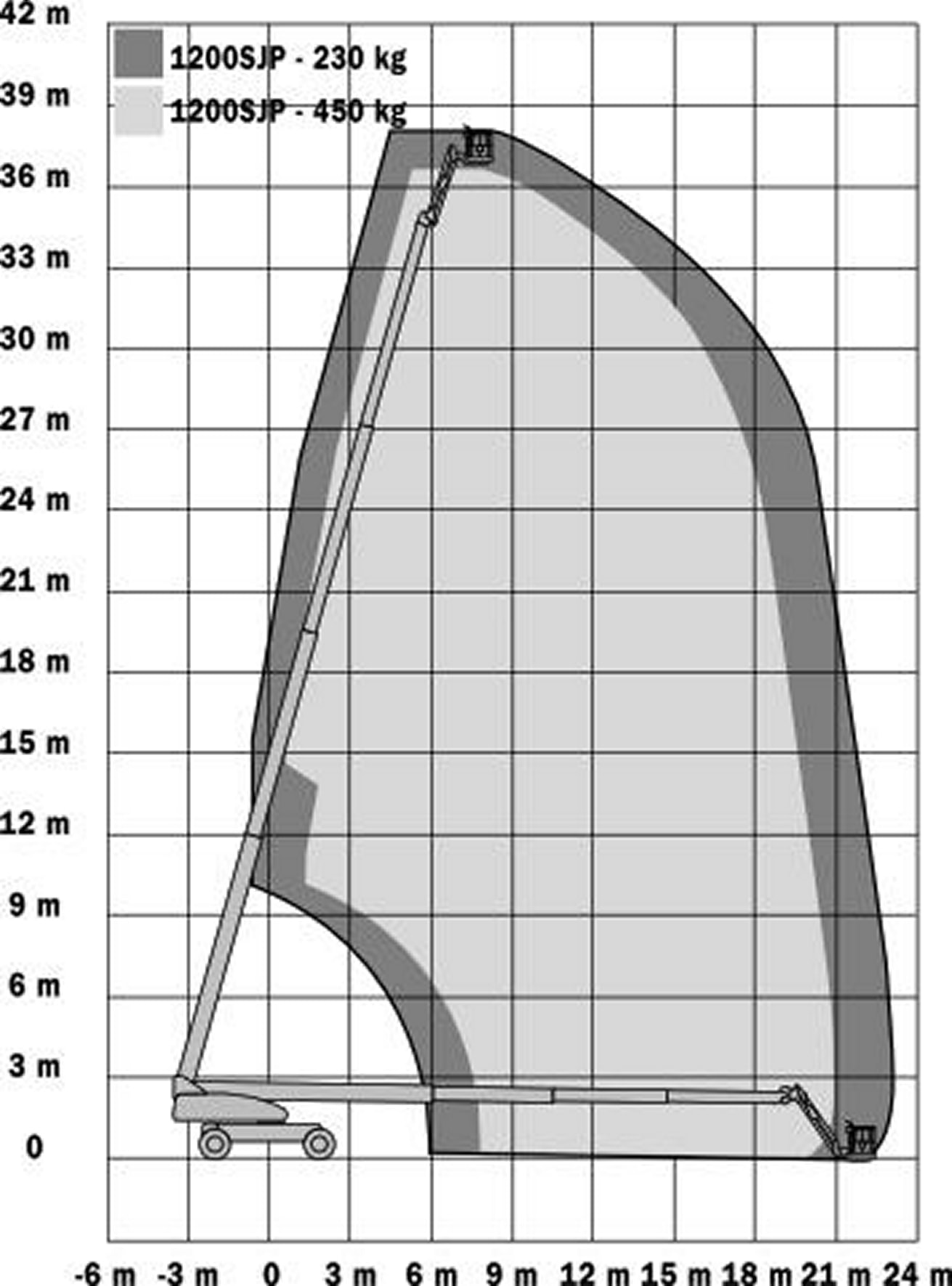

Diagram
Downloads

An upgrade in toughness and strength from the well proven

The JLG 1200SJP is the largest self-propelled telescopic boom lift offers working height of 38.73 m with reliablity and safety. The JLG 1200SJP ultra boom lift is much faster to full height, from ground to maximum height in 95 seconds, so operators can spend more time working and less time positioning the boom. Its capacity to reach over obstacles and to work at heights allows you to use this machine in various environments: in department stores, factories and shopping centres. The narrow varieties of the telescopic boom lift are capable of operating on narrow pathways. It is equipped with a fuel-efficient Tier 4 engine. Four wheel drive and four wheel steer plus oscillating axle for superb jobsite mobility. Dual platform capacity with up to 450kg provides increased versatility and productivity.
