DBT160

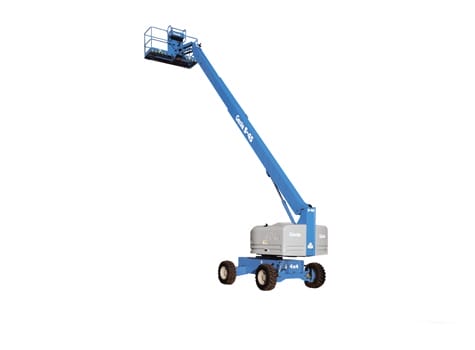

Genie S45
Telescopic Boom Lift – 16.0m Diesel
Ready to rent: our Genie S45 Telescopic boom lifts provides a working height of 15,72 m and a maximum of 12 m horizontal reach. The maximum lift capacity for this Genie is 227 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
15,72 m
Outreach
12,00 m
Workload Capacity
227 kg
Own weight
6.709 kg
Consumption (average / h)
5.2 l/hour
CO2 emission (average / h)
13,88 kg
Platform dimensions (d x w)
0,91 x 2,44m
Transport dimensions (d x w x h)
8,48 x 2,30 x 2,49m
Max platform height
13,72 m
Max platform outreach
11,12 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
20,00 %
Usage
Outdoor, Offroad
Lifting Propulsion
Electric
Diagram
Downloads
