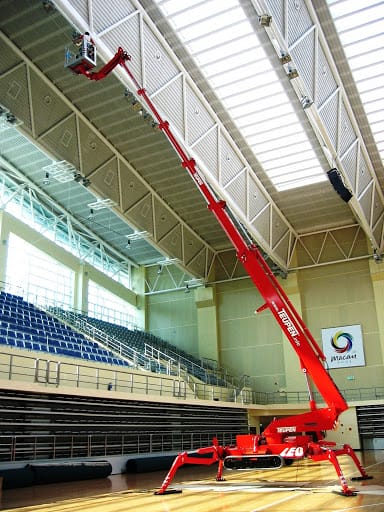

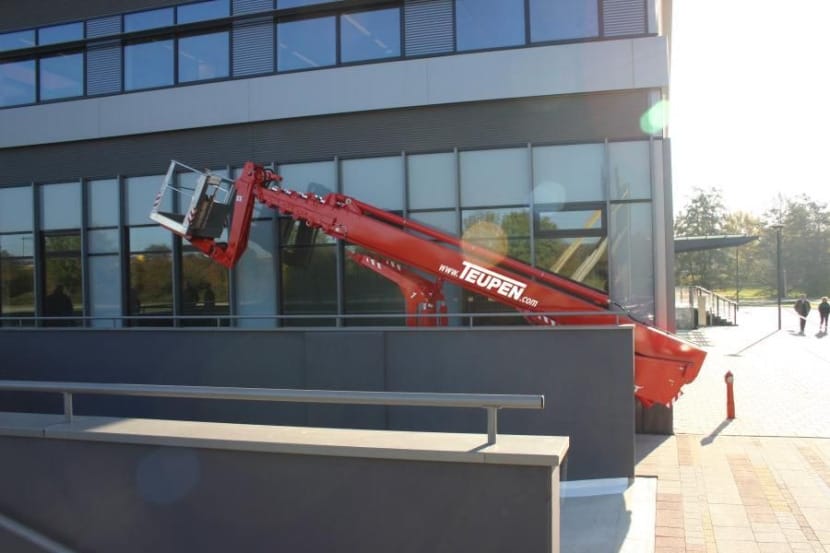

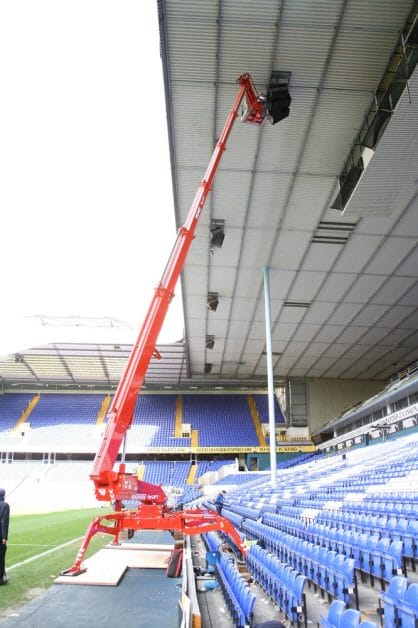

Teupen 36T - Spider lift
Teupen 36T - Spider lift
Arrow-left
Arrow-right

DSP355

Teupen 36T

Spider Lift – 35.5m Diesel

The Teupen 36T Spider lifts provides a working height of 35,5 m and a maximum of 15 m horizontal reach. The maximum lift capacity for this Teupen is 200 kg.

Rent this machine

Need help with rental?
Safety gear required
Technical data
Driving propulsion
Diesel
Working height
35,50 m
Outreach
15,00 m
Workload Capacity
200 kg
Own weight
4.850 kg
Platform dimensions (d x w)
1,20 x 0,80m
Transport dimensions (d x w x h)
8,18 x 1,58 x 1,98m
Max platform height
33,50 m
Max platform outreach
15,00 m
Up & over height
2,50 m
Maneuvering at height
No
Usage
Outdoor, Indoor
Lifting Propulsion
Hybrid
Diagram
Downloads

An upgrade in toughness and strength from the well proven

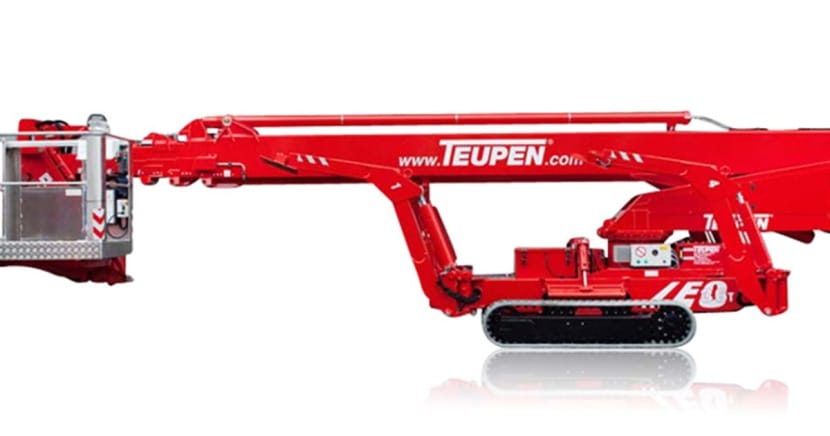

The Teupen Leo 36T spider lift offers working height of 36m and it wide range of features can fulfill various requirements for indoor and outdoor operations. Its multi-position stabilizer system permits to automatically set up the machine in confined areas and on slopes.The powerful rubber track drive allows maneuvering the spider lift to the millimeter. It also allows to drive the lift through rough terrain and climb steep slopes. Manlift spider lifts are equipped with an electric motor which allow you to work silently and emission free to carry out indoor operations.
