DSP230

Teupen 23GT

Spider Lift – 23.0m Diesel

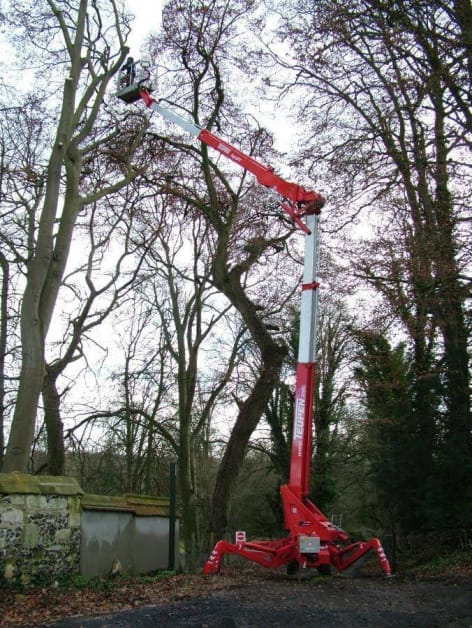

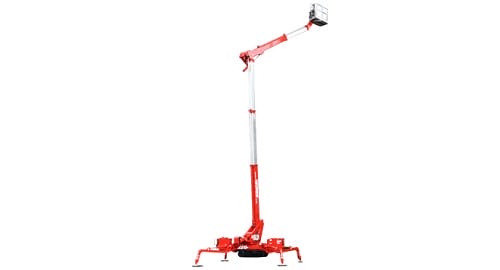

The Teupen 23GT Spider lifts provides a working height of 23,2 m and a maximum of 11 m horizontal reach. The maximum lift capacity for this Teupen is 200 kg.

Rent this machine

Need help with rental?
Safety gear required
Technical data
Driving propulsion
Diesel
Working height
23,20 m
Outreach
11,00 m
Workload Capacity
200 kg
Own weight
3.100 kg
Platform dimensions (d x w)
1,40 x 0,70m
Transport dimensions (d x w x h)
6,20 x 0,98 x 1,98m
Max platform height
21,20 m
Max platform outreach
11,00 m
Drive speed
1,30 km/u
Up & over height
11,70 m
Recommended number of people
2
Maneuvering at height
No
Gradeability
30,00 %
Usage
Outdoor, Indoor
Lifting Propulsion
Electric
Diagram
Downloads

An upgrade in toughness and strength from the well proven

The Teupen Leo 23GT spider lift offers working height of 23m and it wide range of features can fulfill various requirements for indoor and outdoor operations. Its multi-position stabilizer system permits to automatically set up the machine in confined areas and on slopes.The powerful rubber track drive allows maneuvering the spider lift to the millimeter. It also allows to drive the lift through rough terrain and climb steep slopes. Manlift spider lifts are equipped with an electric motor which allow you to work silently and emission free to carry out indoor operations.
