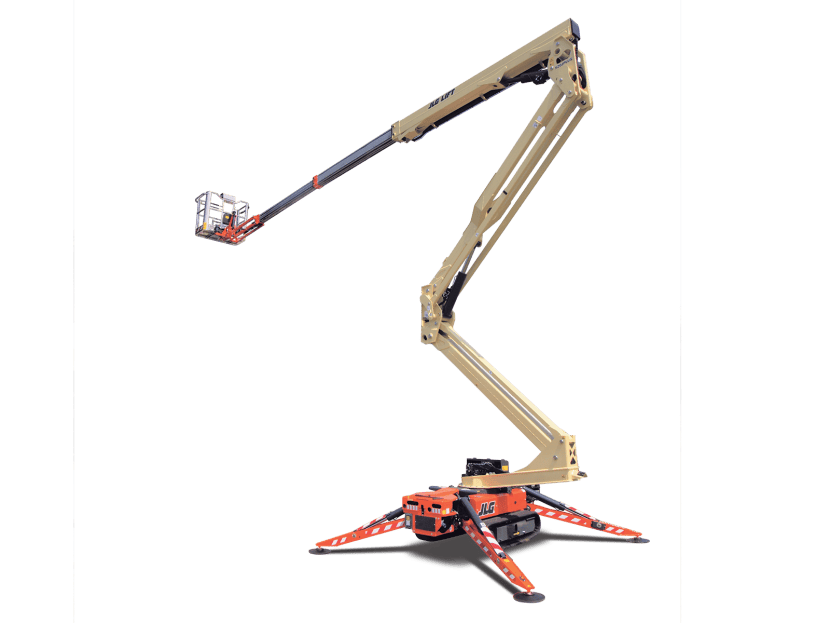

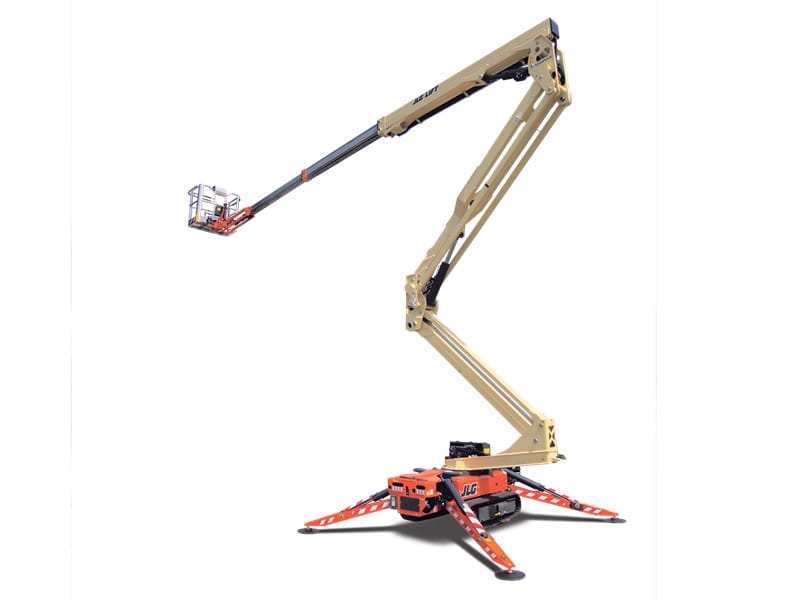

JLG X20J+D - Spider lift
JLG X20J+D - Spider lift
JLG X20J+D - Spider lift
Arrow-left
Arrow-right

DSP200

JLG X20J+D

Spider Lift – 20.0m Diesel

The JLG X20J+D Spider lifts provides a working height of 20,1 m and a maximum of 9,7 m horizontal reach. The maximum lift capacity for this JLG is 230 kg.

Rent this machine

Need help with rental?
Safety gear required
Technical data
Driving propulsion
Diesel
Working height
20,10 m
Outreach
9,70 m
Workload Capacity
230 kg
Own weight
2.840 kg
Platform dimensions (d x w)
1,34 x 0,69m
Transport dimensions (d x w x h)
5,00 x 1,48 x 1,99m
Max platform height
18,10 m
Max platform outreach
9,90 m
Up & over height
8,20 m
Recommended number of people
2
Maneuvering at height
No
Gradeability
28,70 %
Usage
Indoor, Outdoor
Lifting Propulsion
Diesel
Diagram
Downloads

An upgrade in toughness and strength from the well proven

The JLG X20JP spider lift offers working height of 20.05m and it wide range of features can fulfill various requirements for indoor and outdoor operations. Spider lifts can assure a safe positioning even with little space as the multi-position stabiliser system permits to automatically set up the machine in confined areas and on slopes. The powerful rubber track drive allows manoeuvering the spider lift to the millimeter. It also allows to drive the lift through rough terrain and climb steep slopes. The spider lifts are also equipped with outstanding features that are very often needed when working on buildings or in tree tops. For every job the right drive is on board as Manlift spider lifts are equipped with an electric motor to work silently and emission-free inside of buildings, and for outdoor use they have a powerful and robust Diesel engine. Optionally the diesel engine can be replaced with a battery pack.
