DSW215

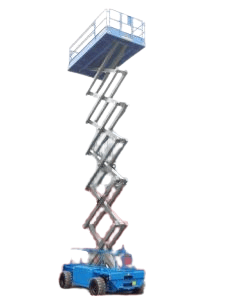

Hollandlift HL-220D25
Scissor Lift – 21.5m Diesel
The Diesel powered Hollandlift HL-220D25 offers you impressive versatility. With a working height of 21,7 m and a lifting capacity of 750 kg, this rental machine gives you exactly what you need to work efficiently. Ideal for Outdoor. The platform is size 4,50 m by 2,30 m.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
21,70 m
Workload Capacity
750 kg
Own weight
11.990 kg
Consumption (average / h)
7,40 kWh
CO2 emission (average / h)
19,76 kg
Platform dimensions (d x w)
4,50 x 2,30m
Transport dimensions (d x w x h)
4,84 x 2,44 x 2,88m
Max platform height
19,70 m
Maneuvering at height
Yes
Gradeability
30,00 %
Usage
Outdoor
Lifting Propulsion
Diesel

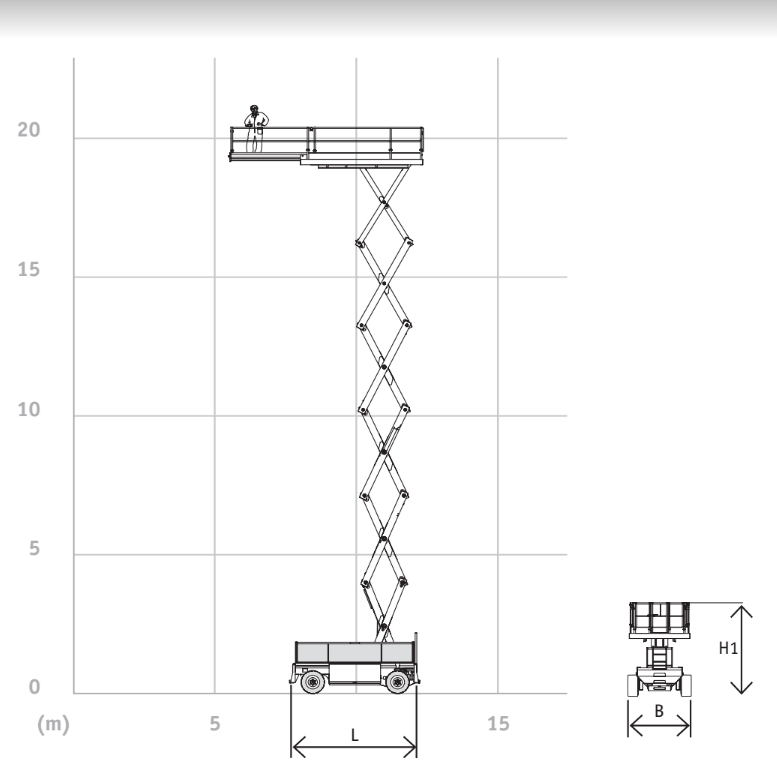

Diagram
![](https://ekk8m38eu48.exactdn.com/app/uploads/sites/31/2024/02/Hollandlift-HL-220D25-reach-diagram.png?strip=all&lossy=1&quality=92&webp=92&avif=80&sharp=1&ssl=1)
Downloads
An upgrade in toughness and strength from the well proven
The Holland HL-220 D25 scissor lift provides working height of 22 m and is commonly used to work in narrow spaces where one has to move around at low level heights in order to perform various tasks safely. The Holland HL-220 D25 is a diesel powered scissor lift.
