ESN140

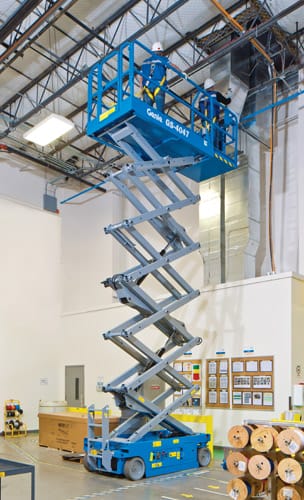

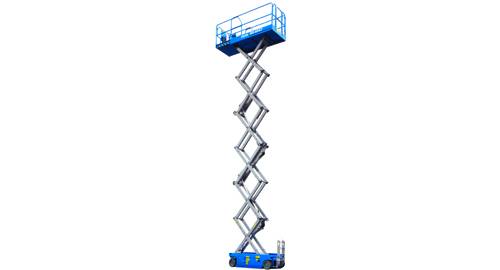

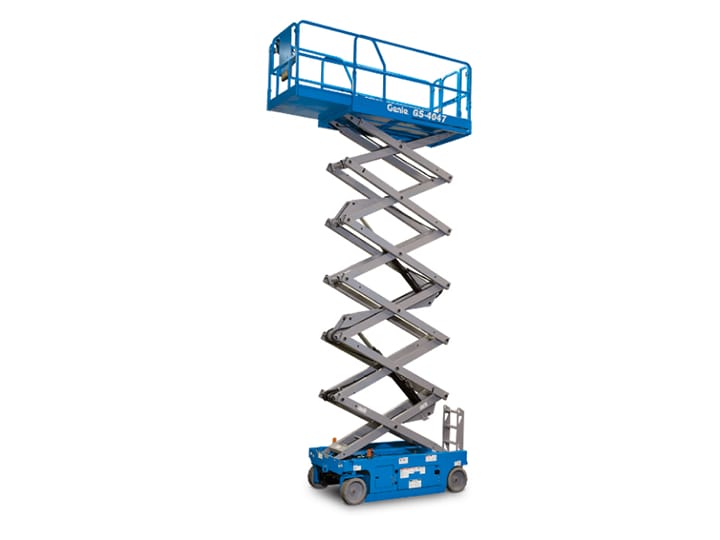

Genie GS4047
Scissor Lift – 14.0m Electric
The Electric powered Genie GS4047 offers you impressive versatility. With a working height of 13,89 m and a lifting capacity of 249 kg, this rental machine gives you exactly what you need to work efficiently. Ideal for Indoor
Outdoor. The platform is size 2,26 m by 1,16 m.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Electric
Working height
13,89 m
Workload Capacity
249 kg
Own weight
3.260 kg
Consumption (average / h)
8.73 kWh
CO2 emission (average / h)
4,12 kg
Platform dimensions (d x w)
2,26 x 1,16m
Transport dimensions (d x w x h)
2,48 x 1,19 x 1,96m
Platform extension length
0,91 m
Max platform height
11,89 m
Maneuvering at height
Yes
Gradeability
25,00 %
Usage
Outdoor, Indoor
Lifting Propulsion
Electric
Diagram
Downloads
An upgrade in toughness and strength from the well proven
The Genie GS4047 scissor lift provides working height of 13.75 m and is commonly used to work in narrow spaces where one has to move around at heights in order to perform various tasks safely. The Genie 1930 scissor lift is available in both electric and diesel power sources. The electric scissor lift can be used indoor/outdoor as it follows zero-emission policy as compare to the diesel powered scissor lift which is mainly used for outdoor terrain where larger platform is required with more lifting capacity. Front-wheel drive and zero inside turning radius. Compact dimensions for easily passing through standard double doors. 3-ft (0.91 m) extension deck maximum platform workspace. 25% gradient to get up slopes and loading ramps.
