DBA430

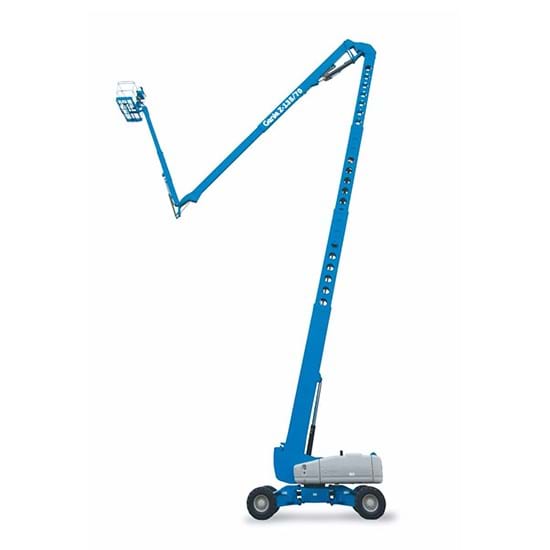

Genie Z135/70
Articulated Boom Lift – 43.0m Diesel
Ready to rent: our Genie Z135/70 Articulated boom lifts provides a working height of 43,15 m and a maximum of 21,3 m horizontal reach. The maximum lift capacity for this Genie is 272 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
43,15 m
Outreach
21,30 m
Workload Capacity
272 kg
Own weight
20.502 kg
Consumption (average / h)
7,40 kWh
CO2 emission (average / h)
19,76 kg
Platform dimensions (d x w)
0,91 x 2,44m
Transport dimensions (d x w x h)
12,93 x 2,46 x 3,09m
Max platform height
41,15 m
Max platform outreach
21,30 m
Up & over height
23,01 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
45,00 %
Usage
Outdoor
Lifting Propulsion
Diesel

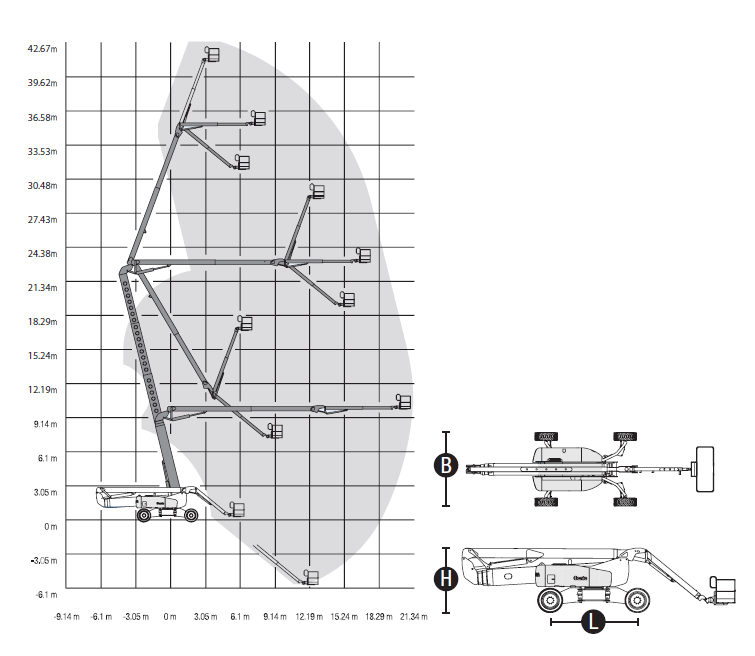

Diagram
![](https://ekk8m38eu48.exactdn.com/app/uploads/sites/31/2024/02/Genie-Z13570-reach-diagram.png?strip=all&lossy=1&quality=92&webp=92&avif=80&sharp=1&ssl=1)
Downloads
An upgrade in toughness and strength from the well proven
The Genie Z135/70 articulating boom lift provides working height of 43.15 m. Ideally used for outdoor construction and industrial applications Genie’s engine-powered articulating Z booms provide lifting versatility with a combination of up, out and over positioning capabilities and outreach. Quiet diesel engine options for increased performance, gradeability and terrainability. Genie Z135/70 diesel boom lift can be deployed in areas with little maneuvering space and on rough terrain.
