DBA205

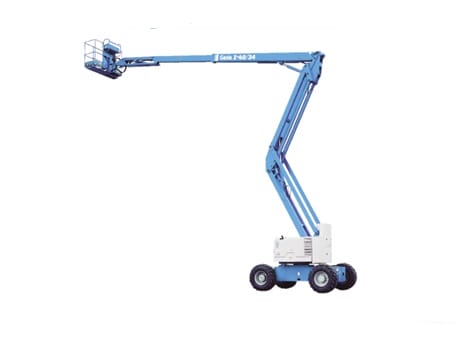

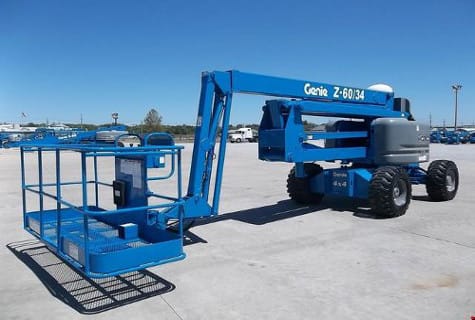

Genie Z60/34
Articulated Boom Lift – 20.5m Diesel
Ready to rent: our Articulated boom lifts provides a working height of and a maximum of horizontal reach. The maximum lift capacity for this is .
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Diesel
Working height
20,39 m
Outreach
11,10 m
Workload Capacity
227 kg
Own weight
10.215 kg
Consumption (average / h)
5,40 kWh
CO2 emission (average / h)
14,42 kg
Platform dimensions (d x w)
0,91 x 2,44m
Transport dimensions (d x w x h)
8,15 x 2,46 x 2,69m
Max platform height
18,39 m
Max platform outreach
11,10 m
Up & over height
8,23 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
45,00 %
Usage
Outdoor
Lifting Propulsion
Electric
Diagram
![](https://ekk8m38eu48.exactdn.com/app/uploads/sites/31/2024/02/Genie-Z6034-reach-diagram.png?strip=all&lossy=1&quality=92&webp=92&avif=80&sharp=1&ssl=1)
Downloads
An upgrade in toughness and strength from the well proven
The Genie Z60/34 articulating boom lift provides working height of 20.39 m provide lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none. Hydraulic rotation lets you move the platform where you need it. Self-leveling feature keeps the platform level through the entire range of motion. Genie Z60/34 diesel boom lift can be deployed in areas with little maneuvering space and on rough terrain.
