EBA140

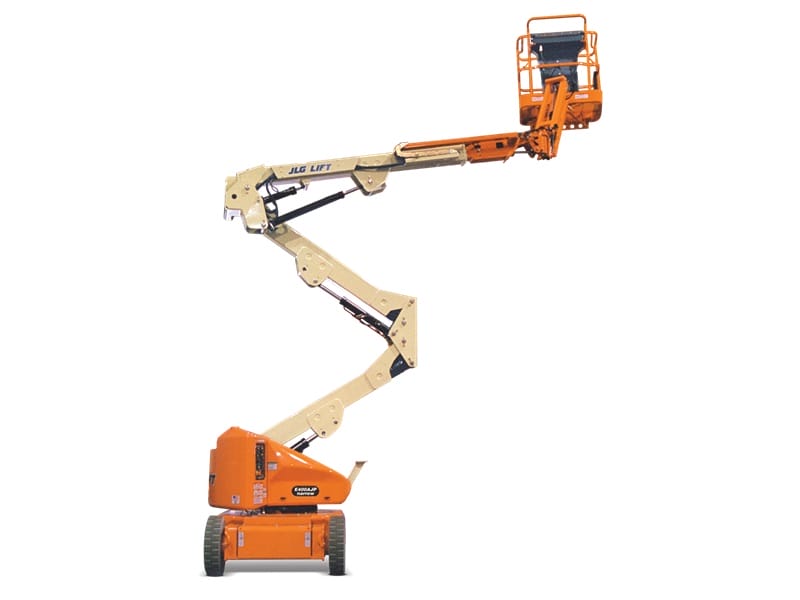

JLG E400AJPN
Articulated Boom Lift – 14.0m Electric
Ready to rent: our JLG E400AJPN Articulated boom lifts provides a working height of 14,19 m and a maximum of 7,89 m horizontal reach. The maximum lift capacity for this JLG is 230 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Electric
Working height
14,19 m
Outreach
7,89 m
Workload Capacity
230 kg
Own weight
6.850 kg
Consumption (average / h)
8,73 kWh
CO2 emission (average / h)
4,12 kg
Platform dimensions (d x w)
1,22 x 0,76m
Transport dimensions (d x w x h)
6,71 x 1,50 x 1,97m
Max platform height
12,19 m
Max platform outreach
6,83 m
Ground clearance
0,13 m
Drive speed
4,80 km/u
Up & over height
6,55 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
30,00 %
Usage
Indoor
Lifting Propulsion
Electric
Diagram
Downloads
Specification Sheet Manufacturer
JLG E400AJPN Specification sheet EN.pdf
03 Feb 2024
pdf
2.36 mb
BIM Model
MANLIFT_Construction_SiteConstruction_JLG_E400AJPN_HORIZONTAL_POSITION.ifc
11 Apr 2024
ifc
19.91 mb
BIM Model
MANLIFT_Construction_SiteConstruction_JLG_E400AJPN_STOWED_POSITION.ifc
11 Apr 2024
ifc
19.91 mb
BIM Model
MANLIFT_Construction_SiteConstruction_JLG_E400AJPN_VERTICAL_POSITION.ifc
11 Apr 2024
ifc
19.91 mb
BIM Model
MANLIFT-JLG-E400AJPN-HORIZONTAL_OUTREACH.ifc
11 Apr 2024
ifc
19.78 mb
BIM Model
MANLIFT-JLG-E400AJPN-STOWED_POSITION.ifc
11 Apr 2024
ifc
19.75 mb
BIM Model
MANLIFT-JLG-E400AJPN-VERTICAL_OUTREACH.ifc
11 Apr 2024
ifc
19.77 mb
BIM Model
MANLIFT-JLG-E400AJPN.rfa
11 Apr 2024
rfa
15.10 mb
Specification Sheet Manlift
MANLIFT_specsheet_JLG-E400AJPN_en_AE.pdf
11 Apr 2024
pdf
77.95 kb
An upgrade in toughness and strength from the well proven
The JLG E400AJPN is the largest electric boom lift offers working height of 14 m with reliablity and safety. Articulated Boom Lifts (designed to reach up and over an object, articulated boom lifts have one or even two articulating joints in the main boom enabling the machine to have a large outreach potential.). JLG E400AJPN electric boom lifts are mostly used in warehouses, factories, shopping malls and other areas where zero emission standards need to be followed. Move over uneven surfaces with the Automatic Traction Control option.
