EBA140

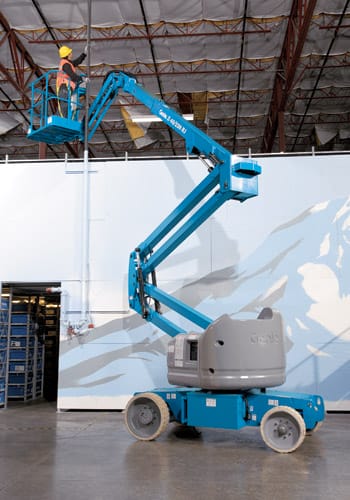

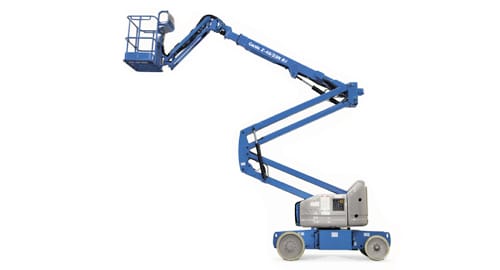

Genie Z40/23NRJ
Articulated Boom Lift – 14.0m Electric
Ready to rent: our Genie Z40/23NRJ Articulated boom lifts provides a working height of 14,32 m and a maximum of 6,9 m horizontal reach. The maximum lift capacity for this Genie is 227 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Electric
Working height
14,32 m
Outreach
6,90 m
Workload Capacity
227 kg
Own weight
6.940 kg
Consumption (average / h)
7.47 kWh
CO2 emission (average / h)
1,61 kg
Platform dimensions (d x w)
0,76 x 1,17m
Transport dimensions (d x w x h)
6,53 x 1,50 x 1,98m
Max platform height
12,32 m
Max platform outreach
6,90 m
Up & over height
6,48 m
Recommended number of people
2
Maneuvering at height
Yes
Gradeability
30,00 %
Usage
Indoor
Lifting Propulsion
Electric
Diagram
Downloads
An upgrade in toughness and strength from the well proven
Minimal tailswing, tight turning radius and compact dimensions for easy manoeuvering in confined jobsites. Compact chassis for narrow aisle access. 30% gradeability and 7.2 km/h travel speed for excellent drive performance. AC drive system for enhanced driving performance and simplified maintenance. 1.22 m articulating jib with a 128° vertical rotation and a 180° horizontal rotation for increased versatility. 180° hydraulic platform rotation and elf-leveling platform for easy operation
