EBA120

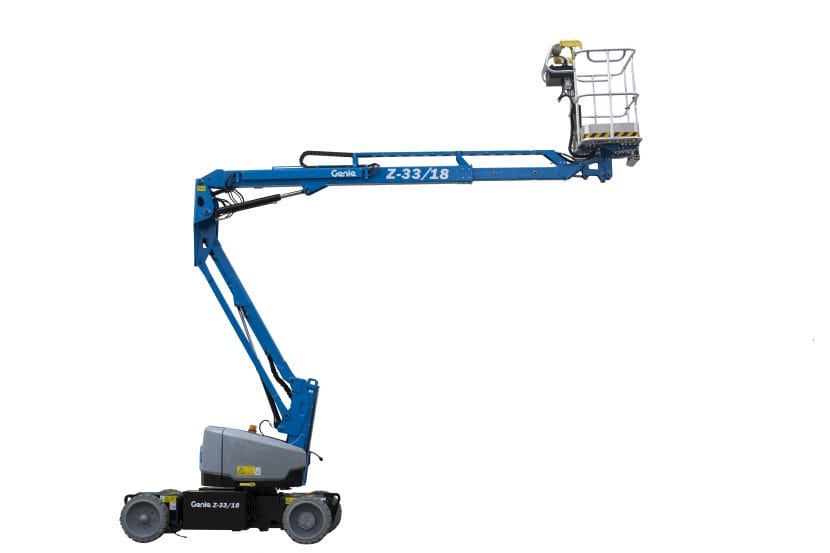

Genie Z33/18
Articulated Boom Lift – 12.0m Electric
Ready to rent: our Genie Z33/18 Articulated boom lifts provides a working height of 12 m and a maximum of 5,6 m horizontal reach. The maximum lift capacity for this Genie is 200 kg.
Rent this machine
Need help with rental?Safety gear required
Technical data
Driving propulsion
Electric
Working height
12,00 m
Outreach
5,60 m
Workload Capacity
200 kg
Own weight
3.665 kg
Consumption (average / h)
8,73 kWh
CO2 emission (average / h)
4,12 kg
Platform dimensions (d x w)
0,76 x 1,17m
Transport dimensions (d x w x h)
4,17 x 1,50 x 1,98m
Max platform height
10,00 m
Max platform outreach
5,60 m
Up & over height
4,28 m
Recommended number of people
1
Maneuvering at height
Yes
Gradeability
30,00 %
Usage
Indoor, Outdoor
Lifting Propulsion
Electric
Diagram
Downloads
An upgrade in toughness and strength from the well proven
Driveable at full height for added productivity in high-rise spaces. 400° turntable rotation for precise positioning at height. Genie Fast Mast™ boom system allows operators to descend and retrieve materials and to quickly return to work at height. Proportional controls for lift and drive functions
